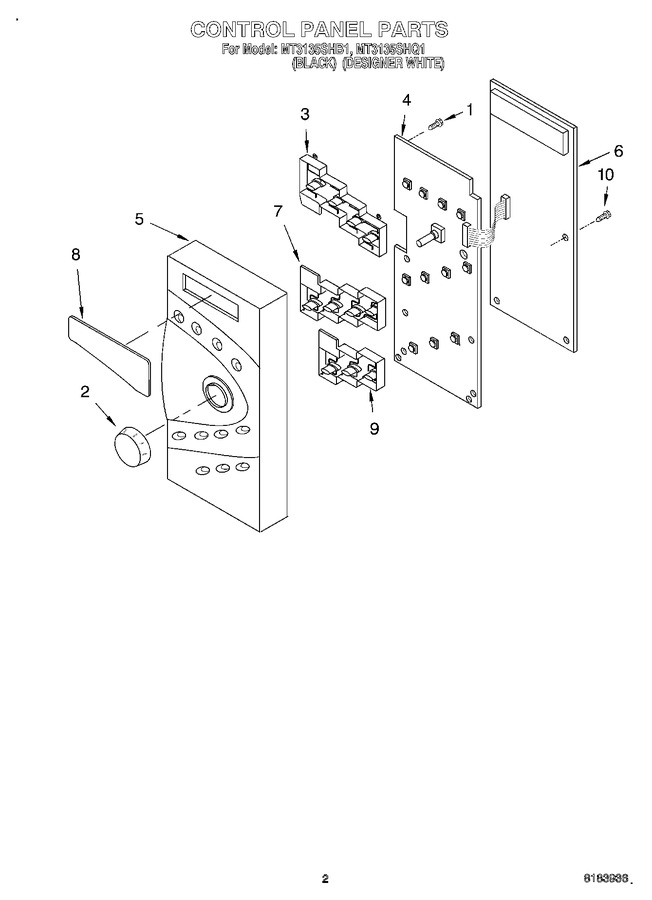

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4358450 | Screw |
|
- | |||||
| 2 | 8171928 | Knob (white) |
|
- | |||||
| 2 | 8171929 | Knob (black) |
|
- | |||||
| 3 | 8171922 | Button, Cook (white) |
|
- | |||||
| 3 | 8171923 | Button, Cook (black) |
|
- | |||||
| 4 | 8171995 | Pcb Assy |
|
- | |||||
| 5 | 8183943 | Control Panel (white) |
|
- | |||||
| 5 | 8183942 | Control Panel (black) |
|
- | |||||
| 6 | 8183941 | P.c.b Sub Assembly |
|
- | |||||
| 7 | 8171925 | Button, Clock (black) |
|
- | |||||
| 7 | 8171924 | Button, Clock (white) |
|
- | |||||
| 8 | 8171996 | Window |
|
- | |||||
| 9 | 8171927 | Button, Start (black) |
|
- | |||||
| 9 | 8171926 | Button, Start (white) |
|
- | |||||
| 10 | 4358883 | Screw |
|
- |
