SELECT A DIAGRAM

01 - Door, Literature


02 - Control Panel


03 - Oven Cavity


04 - Latch Board


05 - Oven Interior


06 - Base Plate

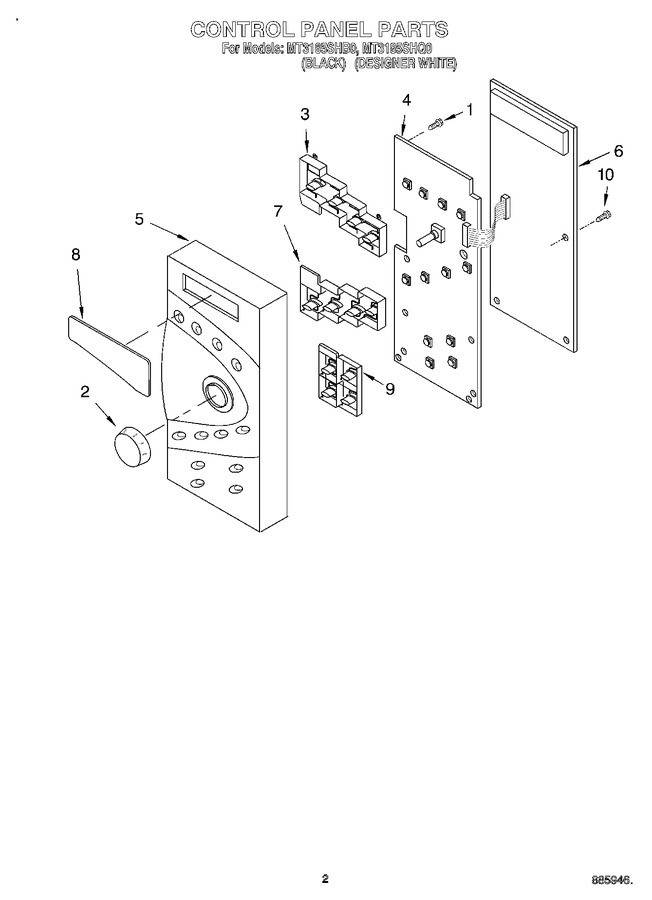

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4358376		Screw		Appelez-nous	-
2	8171928		Knob (white)		Appelez-nous	-
2	8171929		Knob (black)		Appelez-nous	-
3	8171922		Button, Cook (white)		Appelez-nous	-
3	8171923		Button, Cook (black)		Appelez-nous	-
4	8172014		Pcb Assy		Appelez-nous	-
5	8172009		Control Panel (white)		Appelez-nous	-
5	8172010		Control Panel (black)		Appelez-nous	-
6	8172015		P.c.b Sub Assembly		Appelez-nous	-
7	8171925		Button, Clock (black)		Appelez-nous	-
7	8171924		Button, Clock (white)		Appelez-nous	-
8	8172013		Window		Appelez-nous	-
9	8172012		Button, Start (black)		Appelez-nous	-
9	8172011		Button, Start (white)		Appelez-nous	-
10	4358883		Screw		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
