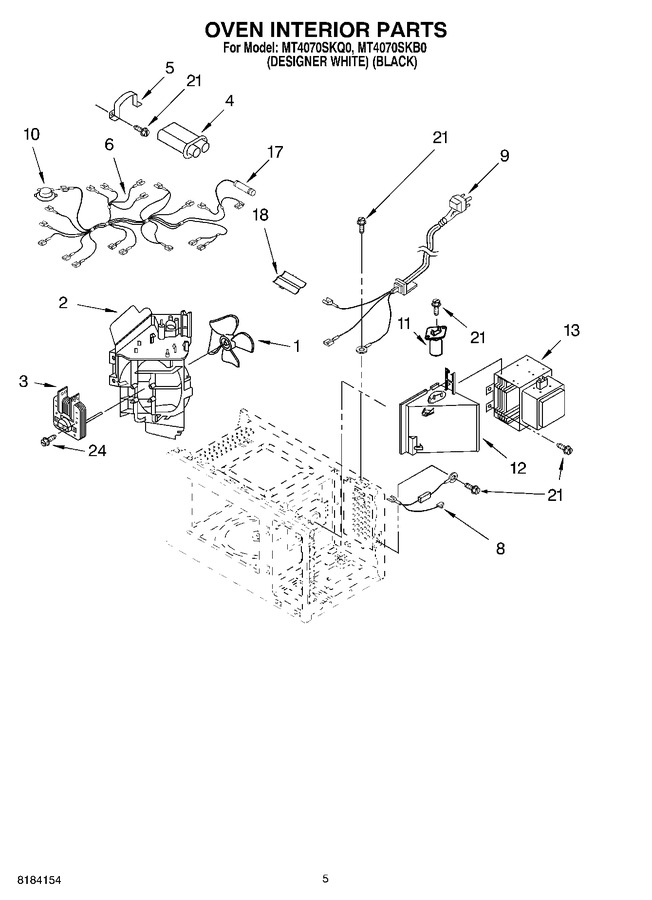

05 - Oven Interior
06 - Base Plate, Optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8184292 | Propeller |
|
$ 89.23 | |||||
| 2 | 8184378 | Guide, Suction |
|
- | |||||
| 3 | 8183767 | Motor, Fan |
|
- | |||||
| 4 | 8184377 | H.v. Capacitor |
|
- | |||||
| 5 | 8172074 | H.v.c Bracket |
|
- | |||||
| 6 | 8184382 | Leadwire Assembly |
|
- | |||||
| 8 | WP8205489 | H.v. Diode Cable (Replaces: 8184295) |
|
$ 58.19 | |||||
| 9 | 8184381 | Power Cord |
|
- | |||||
| 10 | 8184383 | Thermostat |
|
- | |||||
| 11 | 8171810 | Lamp, Baseless |
|
- | |||||
| 12 | 8184379 | Duct, Air |
|
- | |||||
| 13 | 8171941 | Magnetron |
|
- | |||||
| 17 | 4358704 | Fuse |
|
- | |||||
| 18 | 4358659 | Cap |
|
- | |||||
| 21 | 4344826 | Screw (Replaces: 4358489) |
|
$ 14.31 | |||||
| 24 | 4358190 | Screw |
|
- |
