New Model Search:

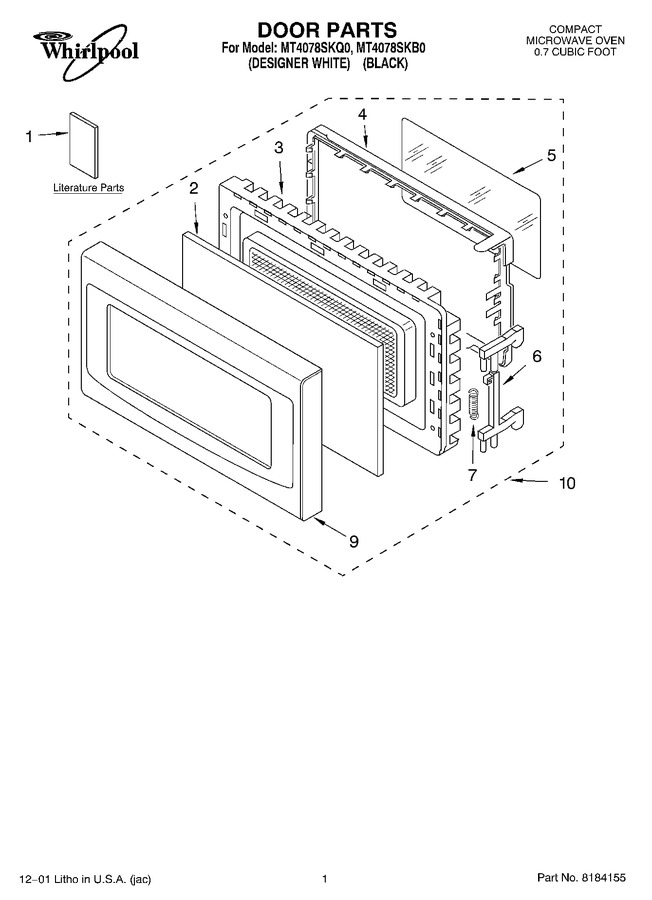

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT8184351 | Literature Parts (use & Care Guide) |
|
- | |||||
| 1 | LIT8183907 | Literature Parts (cook Guide Label) |
|
- | |||||
| 1 | LIT8183909 | Literature Parts (tech Sheet) |
|
- | |||||
| 1 | LIT4359911 | Literature Parts (instructions, Installation) |
|
- | |||||
| 2 | 8172073 | Front Screen |
|
- | |||||
| 3 | 8184352 | Door Frame Assembly (black Model) |
|
- | |||||
| 3 | 8184353 | Door Frame Assembly (white Model) |
|
- | |||||
| 4 | 8184354 | Choke Cover |
|
- | |||||
| 5 | 4359705 | Tape, Seal |
|
- | |||||
| 6 | 8184359 | Latch |
|
- | |||||
| 7 | 8171918 | Spring, Latch |
|
$ 51.20 | |||||
| 9 | 8184358 | Panel, Door (white Model) |
|
- | |||||
| 9 | 8184357 | Panel, Door (black Model) |
|
- | |||||
| 10 | 8184355 | Door Assy (black Model) |
|
- | |||||
| 10 | 8184356 | Door Assy (white Model) |
|
- |
