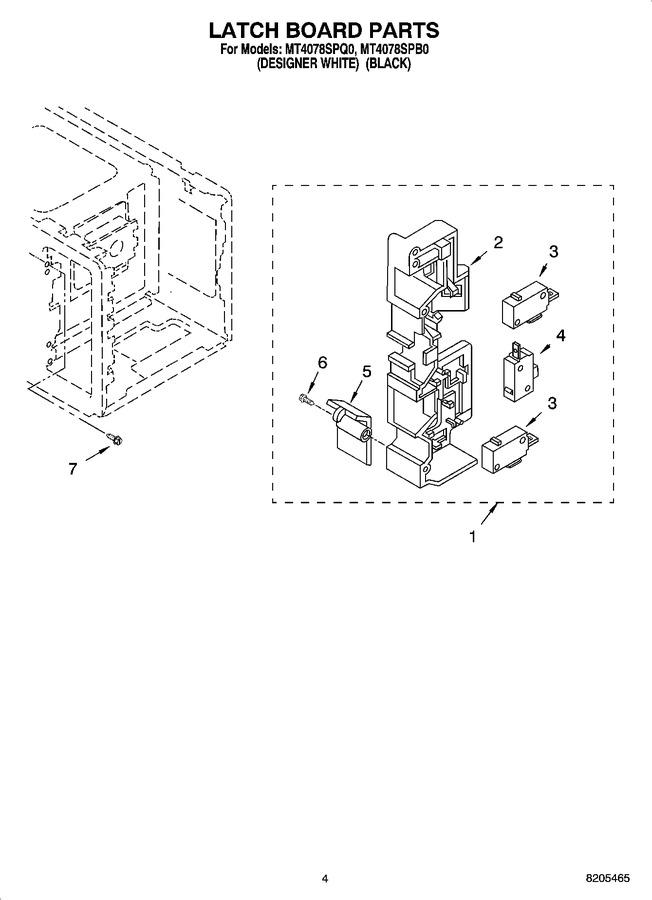

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/A | Latch Board Assembly (non-serviceable) |
|
- | |||||
| 2 | 8205477 | Latch Board |
|
- | |||||
| 2 | 4358381 | Screw |
|
- | |||||
| 3 | 4392027 | Switch Micro Primary (Replaces: 8184285) |
|
$ 138.41 | |||||
| 4 | 4392027 | Switch, Micro Monitor (Replaces: 8184286) |
|
$ 138.41 | |||||
| 5 | 8205478 | Lever |
|
- | |||||
| 6 | 4358271 | Screw |
|
- | |||||
| 7 | 4358271 | Screw |
|
- |
