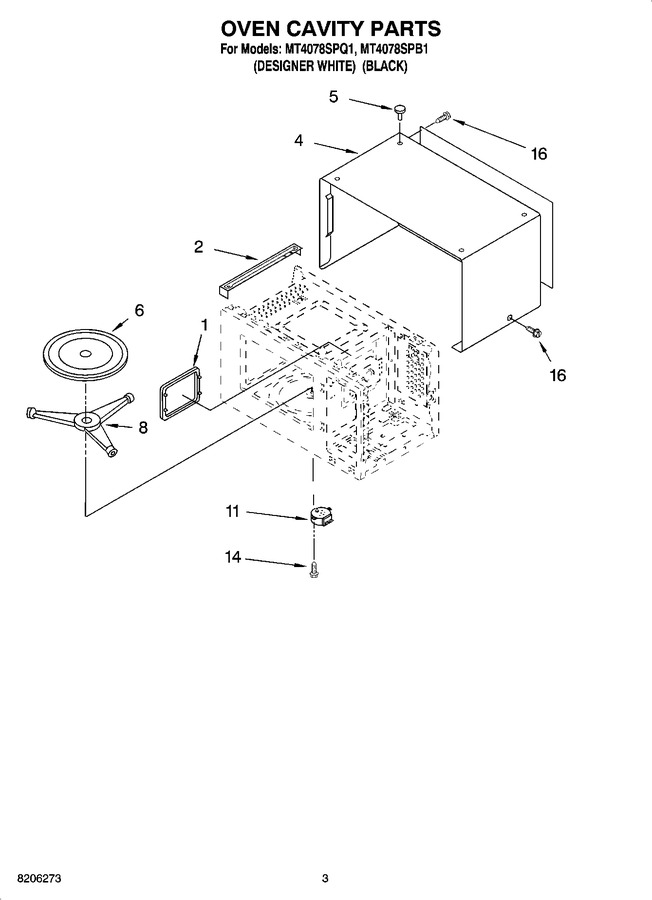

03 - Oven Cavity Parts
04 - Latch Board Parts
05 - Oven Interior Parts
06 - Base Plate Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8205492 | Canopy |
|
- | |||||
| 2 | 8205476 | Utc Bracket |
|
- | |||||
| 4 | 8205475 | Outer Case (black Model) |
|
- | |||||
| 4 | 8205474 | Outer Case (white Model) |
|
- | |||||
| 5 | 4358857 | Mounting Cap (black Model (4)) |
|
$ 6.11 | |||||
| 5 | 4158748 | Mounting Cap (white Model (4)) |
|
- | |||||
| 6 | 8205098 | Tray, Glass |
|
$ 97.94 | |||||
| 8 | 8205099 | Turntable Support |
|
- | |||||
| 11 | WPW10159107 | Motor, Synchronous (Replaces: 8184375) |
|
$ 160.07 | |||||
| 14 | 4358188 | Screw |
|
- | |||||
| 16 | 4358192 | Screw |
|
- |
