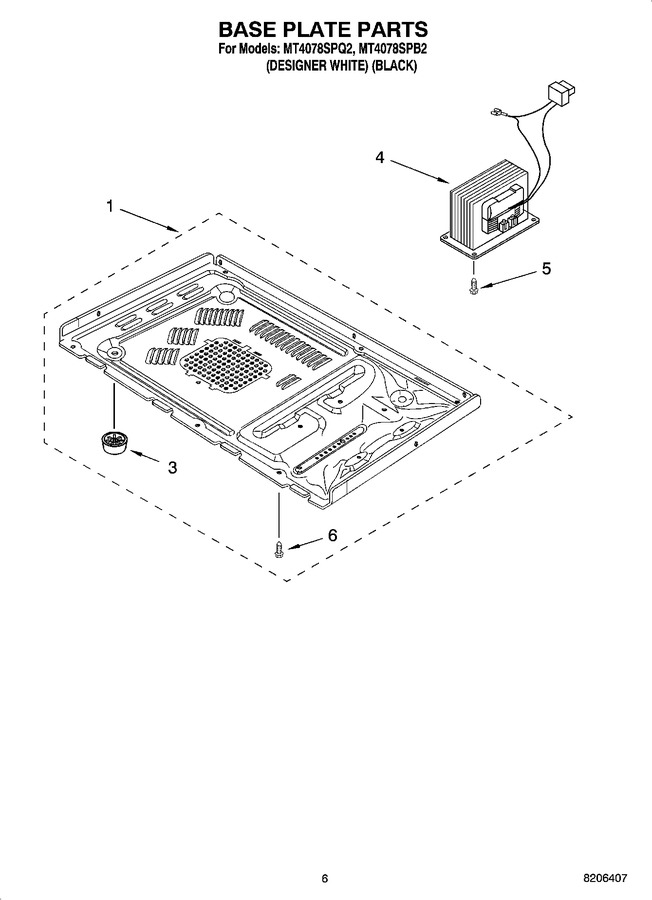

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8205491 | Base Plate Assy |
|
- | |||||
| 3 | 8184385 | Cap |
|
$ 18.96 | |||||
| 4 | 8205485 | Transformer |
|
- | |||||
| 5 | 4344826 | Screw (Replaces: 4358489) |
|
$ 14.31 | |||||
| 6 | 4358192 | Screw |
|
- | |||||
| 6 | N/A | Accessory Parts |
|
- | |||||
| 6 | W10206556 | Utc Kit |
|
- | |||||
| 6 | MK1074XHQ | Trim Kit (white) |
|
- | |||||
| 6 | MK1074XHB | Trim Kit (black) |
|
- |
