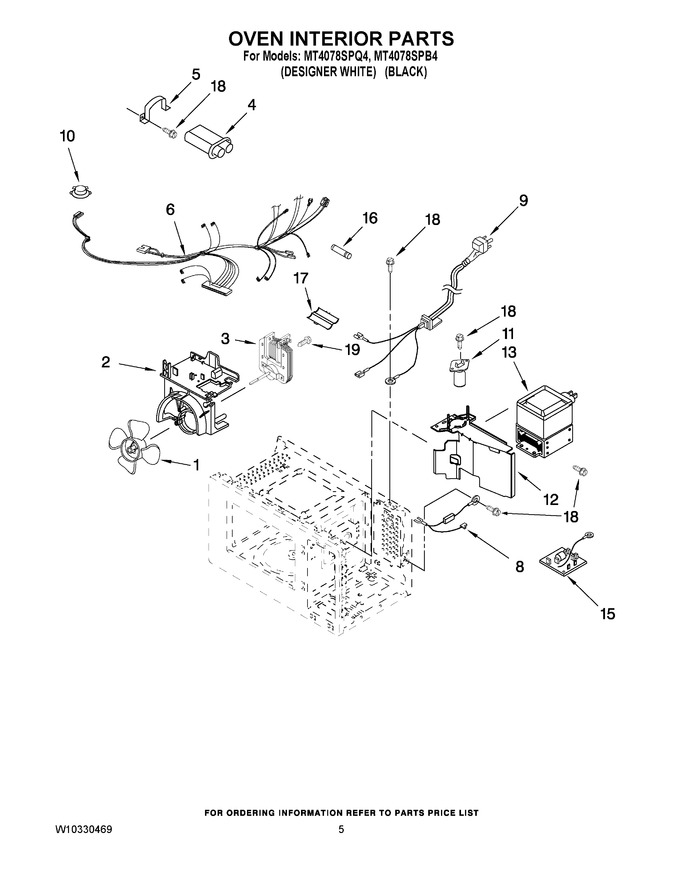

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Door Parts
02 - Control Panel Parts
03 - Oven Cavity Parts
04 - Latch Board Parts
05 - Oven Interior Parts
06 - Base Plate Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8184292 | Blade, Fan |
|
$ 89.23 | |||||
| 2 | W10246255 | Guide, Suction |
|
- | |||||
| 3 | 8205488 | Motor, Fan |
|
- | |||||
| 4 | W10246258 | H.v. Capacitor |
|
- | |||||
| 5 | 8205479 | H.v.c Bracket |
|
- | |||||
| 6 | W10329447 | Leadwire Assembly |
|
- | |||||
| 8 | WP8205489 | H.v. Diode Cable (Replaces: 8205489) |
|
$ 58.19 | |||||
| 9 | W10329457 | Power Cord |
|
- | |||||
| 10 | W10246265 | Thermostat |
|
- | |||||
| 11 | 4359165 | Lamp, Baseless |
|
- | |||||
| 12 | 8205484 | Duct, Air |
|
- | |||||
| 13 | 8205486 | Magnetron |
|
- | |||||
| 15 | W10329455 | Noise Filter |
|
- | |||||
| 16 | W10246259 | Fuse |
|
- | |||||
| 17 | 8205483 | Cap |
|
- | |||||
| 18 | 4344826 | Screw (Replaces: 4358489) |
|
$ 14.31 | |||||
| 19 | 4358190 | Screw |
|
- |
