View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Door Parts

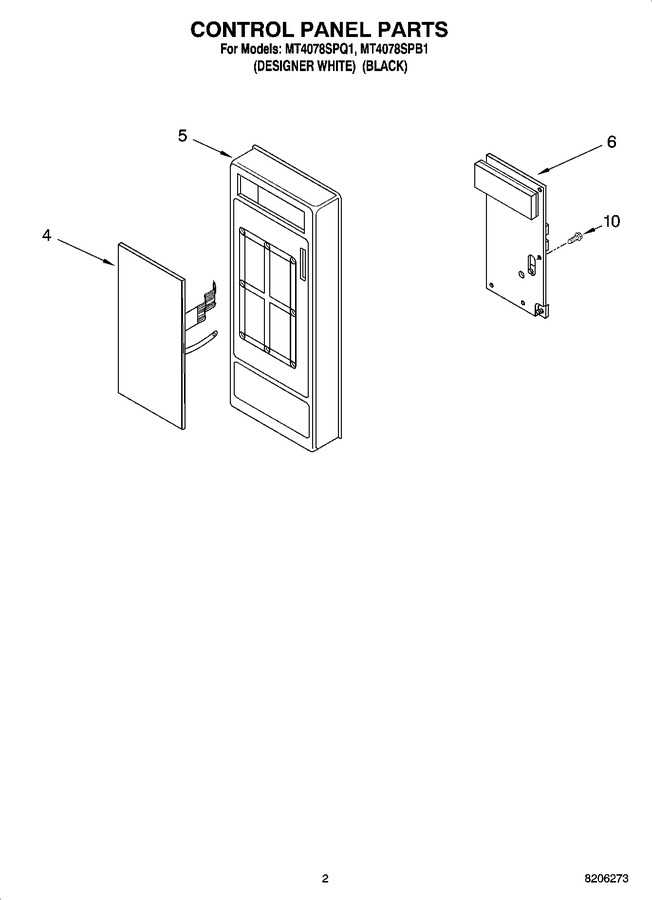

02 - Control Panel Parts
03 - Oven Cavity Parts
04 - Latch Board Parts
05 - Oven Interior Parts
06 - Base Plate Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 4 | 8205468 | Key Membrane (white Model) |
|
- | |||||
| 4 | 8205469 | Key Membrane (black Model) |
|
- | |||||
| 5 | 8205471 | Control Panel (white Model) |
|
- | |||||
| 5 | 8205472 | Control Panel (black Model) |
|
- | |||||
| 6 | 8205473 | Microcomputer |
|
- | |||||
| 10 | 4358883 | Screw |
|
- |
