SELECT A DIAGRAM
01 - Door Parts

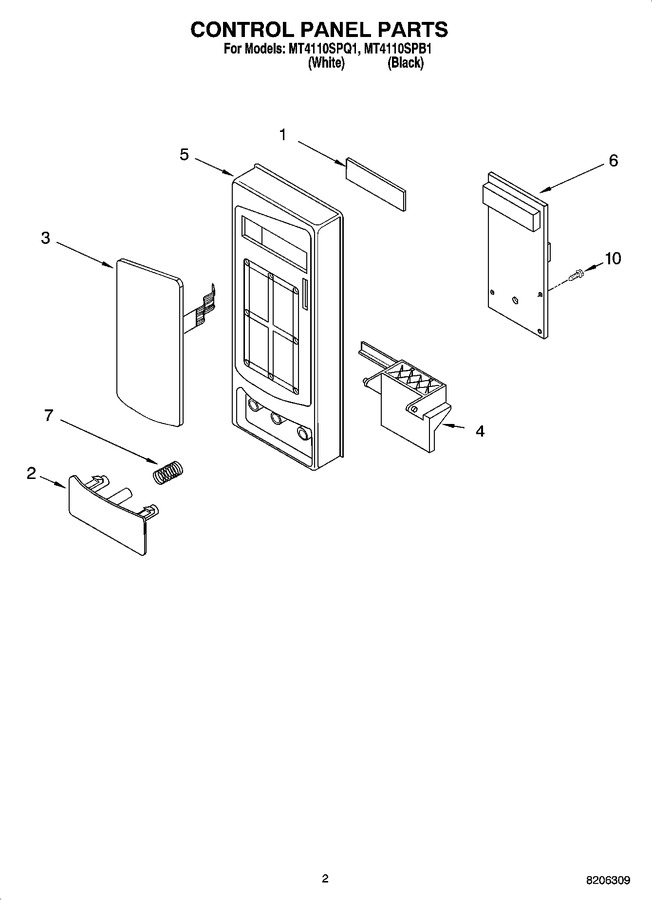

02 - Control Panel Parts
03 - Oven Cavity Parts
04 - Latch Board Parts
05 - Oven Interior Parts
06 - Base Plate Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4359720 | Window (white Model) |
|
- | |||||
| 1 | 8204891 | Window (black Model) |
|
$ 8.20 | |||||
| 2 | 8204894 | Button (white) |
|
- | |||||
| 2 | 8204895 | Button (black) |
|
- | |||||
| 3 | 8204889 | Switch, Membrane (white) |
|
- | |||||
| 3 | 8204890 | Switch, Membrane (black) |
|
$ 146.31 | |||||
| 4 | 8184269 | Lever, Release |
|
$ 36.79 | |||||
| 5 | 8204892 | Control Panel (white) |
|
- | |||||
| 5 | 8204893 | Control Panel (black) |
|
- | |||||
| 6 | 8204896 | Microcomputer |
|
- | |||||
| 7 | 8184272 | Spring |
|
- | |||||
| 10 | 8184272 | Screw |
|
- |
