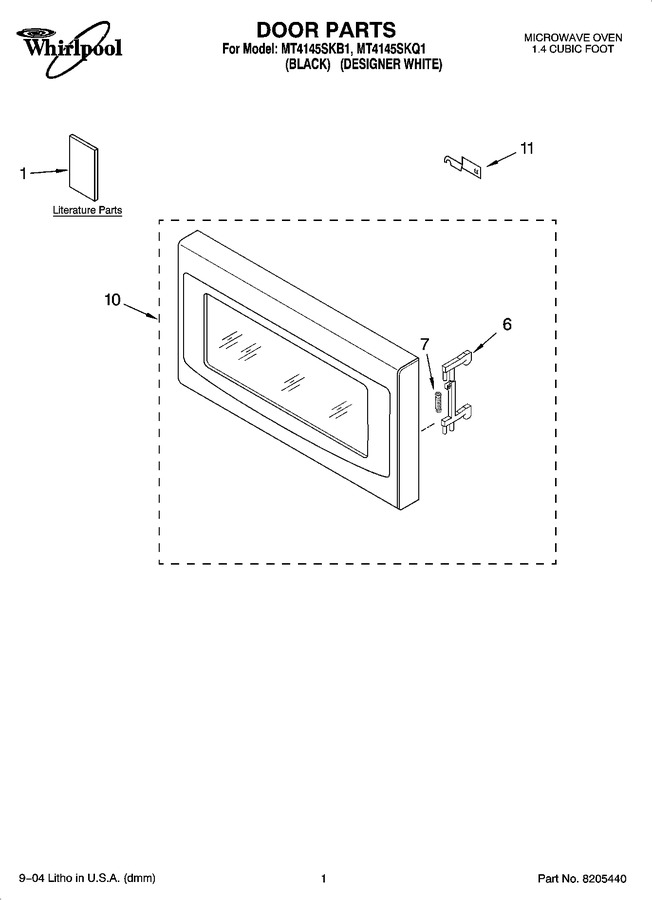

01 - Door Parts
02 - Control Panel Parts
03 - Oven Cavity Parts
04 - Latch Board Parts
05 - Oven Interior Parts
06 - Base Plate Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8172220 | Template-b/i Kit |
|
- | |||||
| 1 | 8184646 | Tech Sheet |
|
- | |||||
| 1 | 8172217 | Instructions, Installation |
|
- | |||||
| 1 | 8172194 | Cook Guide Label |
|
- | |||||
| 1 | 8184577 | Use & Care Guide |
|
- | |||||
| 6 | 4359765 | Latch |
|
- | |||||
| 7 | 4359707 | Spring, Latch |
|
- | |||||
| 10 | 8184419 | Door Assembly (black) |
|
- | |||||
| 10 | 8184423 | Door Assembly (white) |
|
- | |||||
| 11 | 4359710 | Cap |
|
- |
