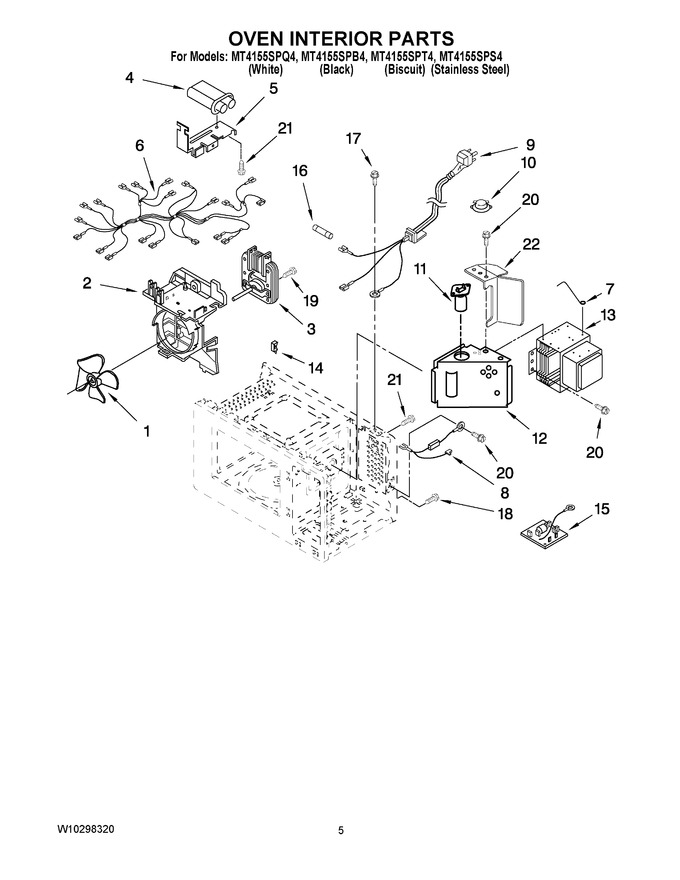

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8205458 | Blade, Fan |
|
$ 42.77 | |||||
| 2 | W10169274 | Guide, Suction |
|
$ 12.51 | |||||
| 3 | 8205462 | Motor, Fan |
|
$ 84.77 | |||||
| 4 | 8184813 | H.v. Capacitor |
|
- | |||||
| 5 | 8184288 | H.v.c Bracket |
|
- | |||||
| 6 | W10169276 | Leadwire Assembly |
|
- | |||||
| 7 | 8184290 | Bracket, Support |
|
- | |||||
| 8 | WP8205489 | H.v. Diode Cable (Replaces: W10171944) |
|
$ 58.19 | |||||
| 9 | 8206281 | Power Cord |
|
$ 98.24 | |||||
| 10 | 8184383 | Thermostat |
|
- | |||||
| 11 | 8171810 | Lamp, Baseless |
|
- | |||||
| 12 | 8204900 | Duct, Air |
|
- | |||||
| 13 | W10859575 | Magnetron (Replaces: 8205460) |
|
$ 361.62 | |||||
| 14 | 4359794 | Holder |
|
- | |||||
| 15 | 8206270 | Filter, Noise |
|
- | |||||
| 16 | WP8183507 | Fuse (Replaces: W10170368) |
|
$ 18.33 | |||||
| 17 | 8204902 | Screw, Ground |
|
- | |||||
| 18 | W10160553 | Screw |
|
- | |||||
| 19 | 4358190 | Screw |
|
- | |||||
| 20 | 4344826 | Screw (Replaces: 4358489) |
|
$ 14.31 | |||||
| 21 | 4358381 | Screw |
|
- | |||||
| 22 | 8205509 | Bracket, Support |
|
$ 34.87 |
