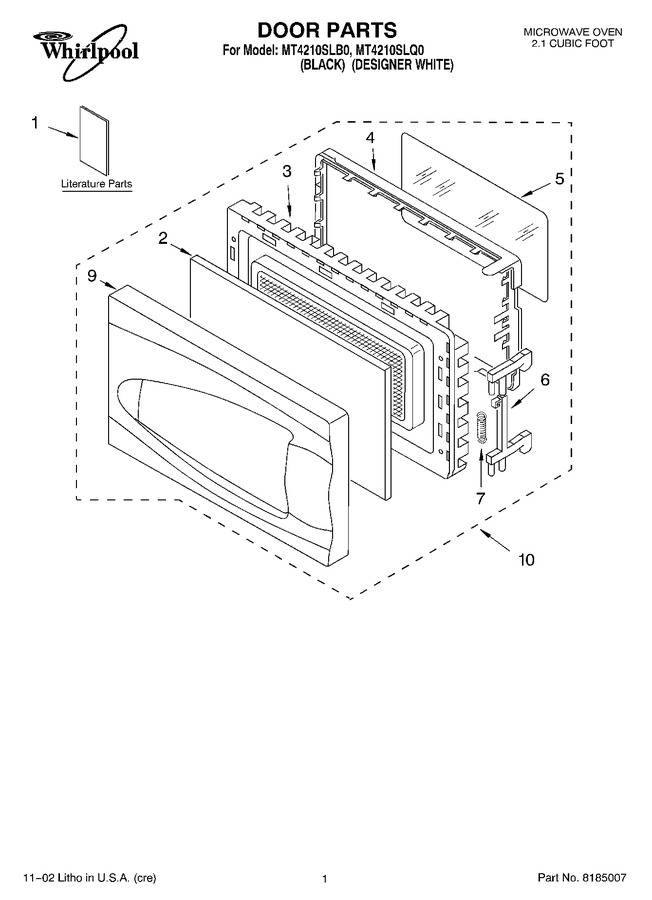

01 - Door Parts
02 - Control Panel Parts
03 - Oven Cavity Parts
04 - Latch Board Parts
05 - Oven Interior Parts
06 - Base Plate Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT8184647 | Literature Parts (guide, U & C) |
|
- | |||||
| 1 | LIT8184648 | Literature Parts (tech Sheet) |
|
- | |||||
| 1 | LIT8183908 | Literature Parts (cook Guide Label) |
|
- | |||||
| 1 | LIT8172218 | Literature Parts (instructions, Installation) |
|
- | |||||
| 1 | 8172220 | Template, Built-in Kit |
|
- | |||||
| 2 | 4359866 | Front Screen |
|
- | |||||
| 3 | 8184736 | Door Frame Assembly (white) |
|
- | |||||
| 3 | 8171890 | Door Frame Assembly (black) |
|
- | |||||
| 4 | 8184431 | Choke Cover |
|
- | |||||
| 5 | 4359870 | Tape, Seal |
|
- | |||||
| 6 | 4359765 | Latch |
|
- | |||||
| 7 | 8171918 | Spring, Latch |
|
$ 51.20 | |||||
| 9 | 8184594 | Panel, Door (black) |
|
- | |||||
| 9 | 8184597 | Panel, Door (white) |
|
- | |||||
| 10 | 8184488 | Door Assembly (white) |
|
- | |||||
| 10 | 8184487 | Door Assembly (black) |
|
- |
