SELECT A DIAGRAM
01 - Cavity And Turntable, Lit/optional
02 - Magnetron And Air Flow
03 - Cabinet
04 - Door And Latch

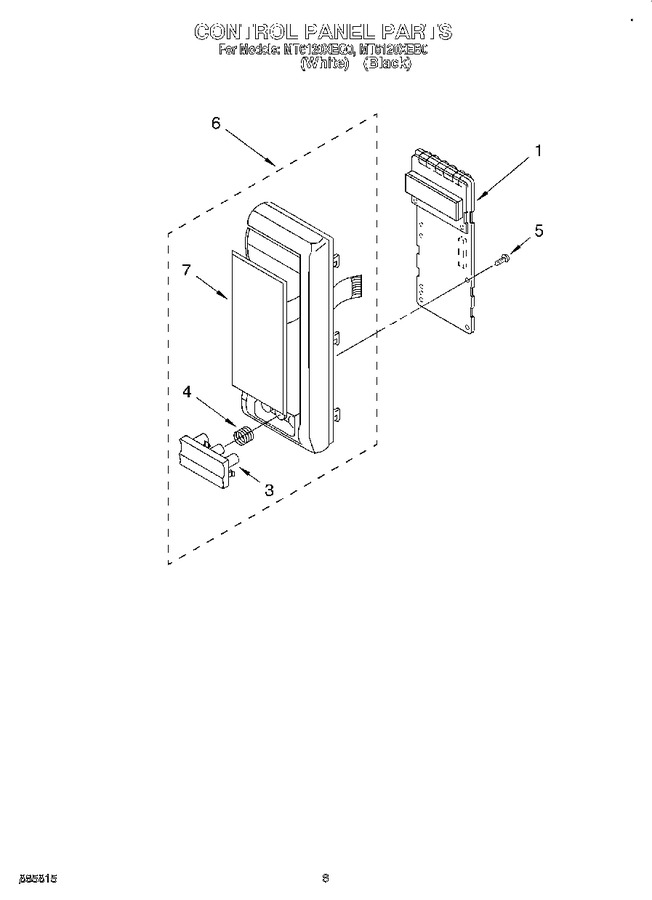

05 - Control Panel
06 - Wiring Harness
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4313127 | Microcomputer |
|
- | |||||
| 3 | 4313142 | Push Button (white) |
|
- | |||||
| 3 | 4313131 | Push Button (black) |
|
- | |||||
| 4 | 4313631 | Spring, Button |
|
- | |||||
| 5 | 4313632 | Screw |
|
- | |||||
| 6 | 4313128 | Control Panel (black) |
|
- | |||||
| 6 | 4313141 | Control Panel (white) |
|
- | |||||
| 7 | 4313130 | Window |
|
- |
