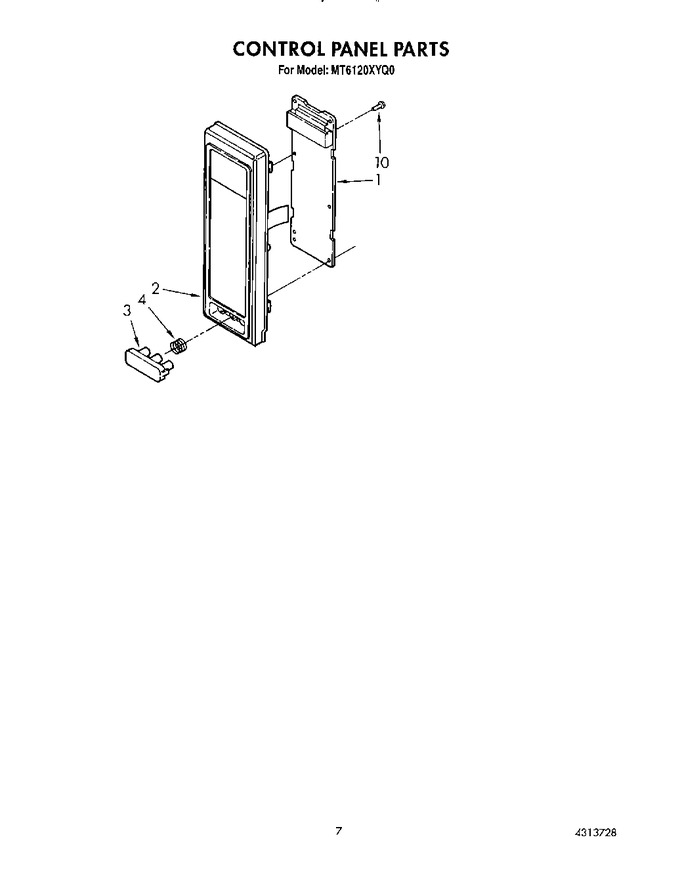

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4313626 | Microcomputer |
|
- | |||||
| 2 | 4365517 | Control Panel (white) |
|
- | |||||
| 2 | 4365516 | Control Panel (black) |
|
- | |||||
| 3 | 4313630 | Push Button (white) |
|
- | |||||
| 3 | 4313629 | Push Button (black) |
|
- | |||||
| 4 | 4313631 | Spring, Button |
|
- | |||||
| 10 | 4313632 | Screw |
|
- |
