SELECT A DIAGRAM

01 - Cavity And Turntable, Lit/optional


02 - Magnetron And Air Flow

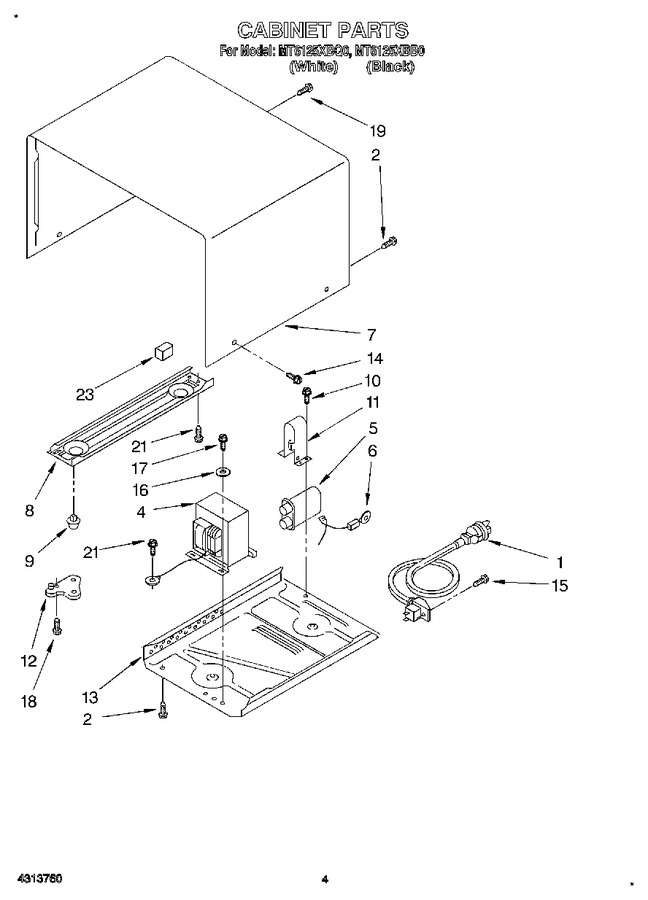

03 - Cabinet


04 - Door Latch


05 - Control Panel, Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4174647		Power Cord		Appelez-nous	-
2	4357320		Screw		Appelez-nous	-
4	4313677		Transformer		Appelez-nous	-
5	4313605		Capacitor		Appelez-nous	-
6	4313671		Rectifier		Appelez-nous	-
7	4365605		Outer Cabinet (black)		Appelez-nous	-
7	4365572		Outer Cabinet (white)		Appelez-nous	-
8	4357345		Base Plate, Left Side		Appelez-nous	-
9	4313684		Foot (4)		Appelez-nous	-
10	4313363		Screw		Appelez-nous	-
11	4313681		Bracket, Capacitor		Appelez-nous	-
12	4313619		Hinge, Lower		Appelez-nous	-
13	4313621		Base Plate, Right Side		Appelez-nous	-
14	4313668		Screw, Cabinet (white)		Appelez-nous	-
14	4174821		Screw, Cabinet (black)		Appelez-nous	-
15	4312922		Screw		Appelez-nous	-
16	4365501		Washer, Ground		Appelez-nous	-
17	4313662		Screw		Appelez-nous	-
18	4313034		Screw		Appelez-nous	-
19	4313665		Screw, Ground		Appelez-nous	-
21	4313661		Screw		Appelez-nous	-
23	4313644		Cushion		Appelez-nous	-
