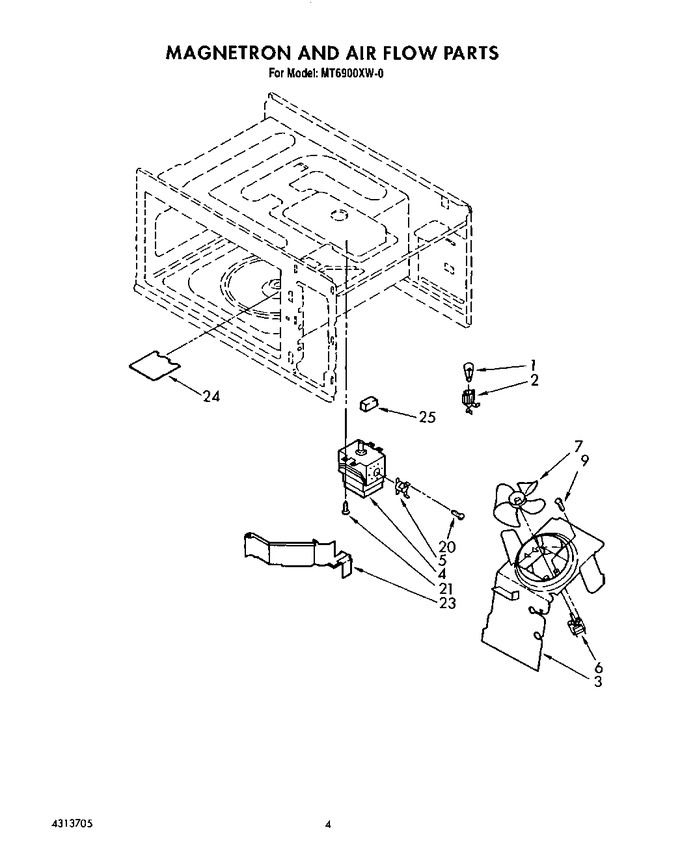

03 - Magnetron And Airflow
04 - Cabinet
05 - Door And Latch
06 - Control Panel
07 - Wiring Harness
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4313608 | Lamp, Oven |
|
- | |||||
| 2 | 4313607 | Socket, Lamp |
|
- | |||||
| 3 | 4313634 | Duct, Fan |
|
- | |||||
| 4 | 4313616 | Magnetron |
|
- | |||||
| 5 | 4313613 | Thermal Fuse |
|
- | |||||
| 6 | 4174672 | Motor, Fan |
|
- | |||||
| 7 | 4174669 | Blade, Fan |
|
- | |||||
| 9 | 4357326 | Screw, 4 X 12 Mm |
|
- | |||||
| 20 | 4174826 | Screw |
|
- | |||||
| 21 | 4174811 | Screw |
|
- | |||||
| 23 | 4313633 | Duct, Magnetron |
|
- | |||||
| 24 | 4313635 | Cover, Wave Guide |
|
- | |||||
| 25 | 4313643 | Shield, Magnetron |
|
- |
