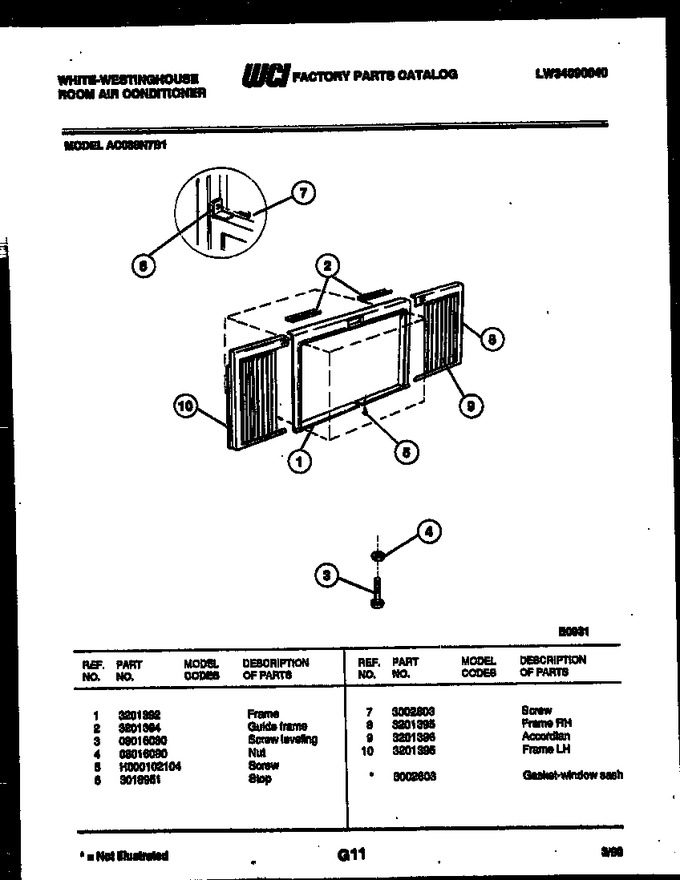

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3201392 | Frame |
|
- | |||||
| 2 | 3201394 | Guide-frame |
|
- | |||||
| 3 | 08016080 | Screw-leveling |
|
- | |||||
| 4 | 08016090 | Nut |
|
- | |||||
| 5 | H000102104 | Screw |
|
- | |||||
| 6 | 3018951 | Stop |
|
- | |||||
| 7 | 3002803 | Screw |
|
- | |||||
| 8 | 3201395 | Frame-rh |
|
- | |||||
| 9 | 3201396 | Accordian |
|
- | |||||
| 10 | 3201395 | Frame Lh |
|
- | |||||
| *27260 | 3002603 | Gasket-window Sash |
|
- |
