Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 4313661 Screw, 4 X 8 Mm Appelez-nous -
2 4174757 Screw, 3 X 8 Mm Appelez-nous -
3 4313690 Tray, Glass Appelez-nous -
4 4313639 Support, Turntable Appelez-nous -
5 4313676 Motor, Turntable Appelez-nous -
6 4365573 Cover, Motor Appelez-nous -
7 242821 Wire (14 Ga. 150 C Blue) Appelez-nous -
7 242830 Wire (14 Ga. 200 C Brown) Appelez-nous -
7 242823 Wire (14 Ga. 150 C Green) Appelez-nous -
7 242824 Wire (14 Ga. 150 C Orange) Appelez-nous -
7 242829 Wire (12 Ga. 150 C Red) Appelez-nous -
7 242825 Wire (14 Ga. 150 C Red) Appelez-nous -
7 242831 Wire (14 Ga. 200 C Red) Special Order $ 342.23

7 242826 Wire (14 Ga. 150 C White) Appelez-nous -
7 242827 Wire (14 Ga. 150 C Yellow) Appelez-nous -
7 242832 Wire (14 Ga. 200 C Yellow) Appelez-nous -
7 242828 Wire (12 Ga. 150 C Black) Appelez-nous -
7 4313642 Gasket, Turntable Appelez-nous -
7 WP261869 Citrine White (1/2 Oz.)   (Replaces: 261869) Special Order $ 23.85

7 832889 Cord Brown (1/2 Oz.) Special Order $ 26.23

7 261900 Citrine White (6 Oz.) Special Order $ 51.34

7 591014 Adhesive Loctite (1/3 Oz.) Appelez-nous -
7 WP482338 Sealer, Silastic (3 Oz.)   (Replaces: 482338) In-Stock Immediately $ 57.16

7 242820 Wire (14 Ga. 150 C Black) Appelez-nous -
7 242822 Wire (14 Ga. 150 C Brown) Appelez-nous -
LIT4313757 Tech Sheet Appelez-nous -
LIT4313765 Use & Care Guide Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

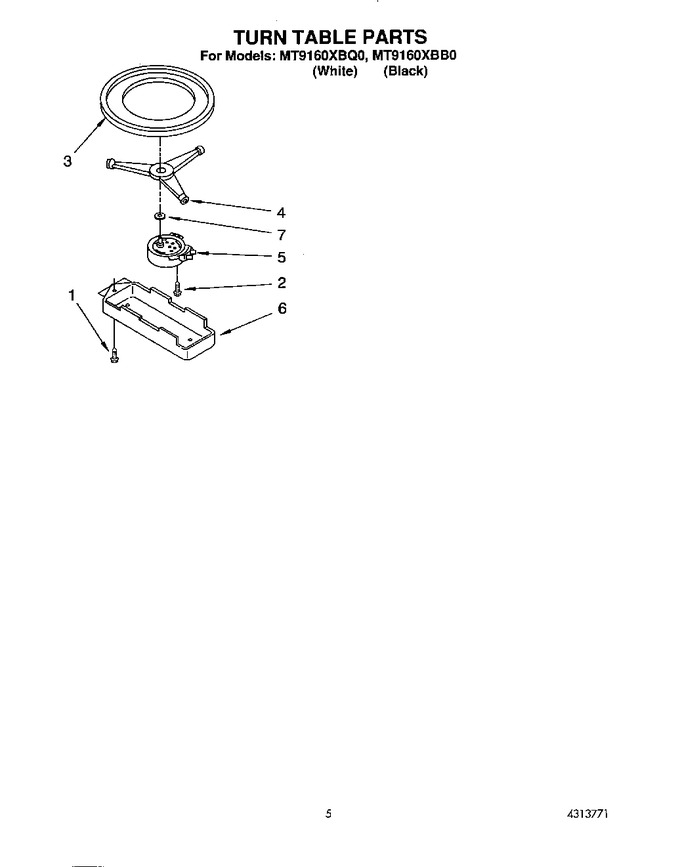

Diagram for MT9160XBB0
