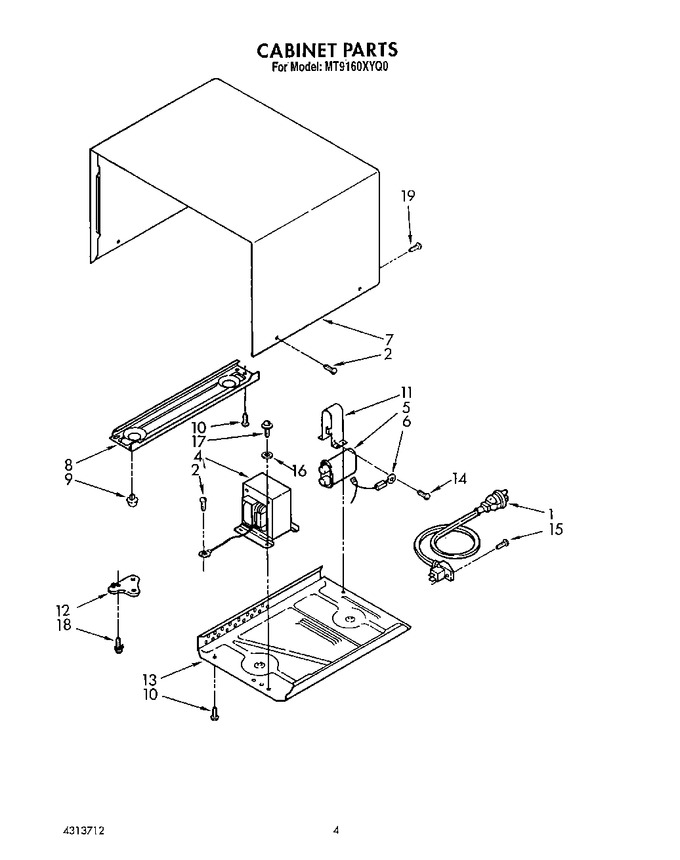

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4313617		Power Cord		Appelez-nous	-
2	4313669		Screw, 4 X 12 Mm (white)		Appelez-nous	-
2	4174821		Screw, 4 X 12 Mm (black)		Appelez-nous	-
4	4313677		Transformer		Appelez-nous	-
5	4313605		Capacitor		Appelez-nous	-
6	4313671		Rectifier		Appelez-nous	-
7	4313688		Outer Cabinet (white)		Appelez-nous	-
7	4313689		Outer Cabinet (black)		Appelez-nous	-
8	4313683		Base Plate, Left Side		Appelez-nous	-
9	4313684		Foot (4)		Appelez-nous	-
10	4357320		Screw, 4 X 16 Mm		Appelez-nous	-
11	4313681		Bracket, Capacitor		Appelez-nous	-
12	4313619		Hinge, Lower		Appelez-nous	-
13	4313682		Base Plate, Right Side		Appelez-nous	-
14	4174811		Screw, No.4 X 8 Mm		Appelez-nous	-
15	4313666		Screw		Appelez-nous	-
16	4365501		Washer, Ground		Appelez-nous	-
17	4313662		Screw		Appelez-nous	-
18	4313664		Screw		Appelez-nous	-
19	4313665		Screw		Appelez-nous	-
