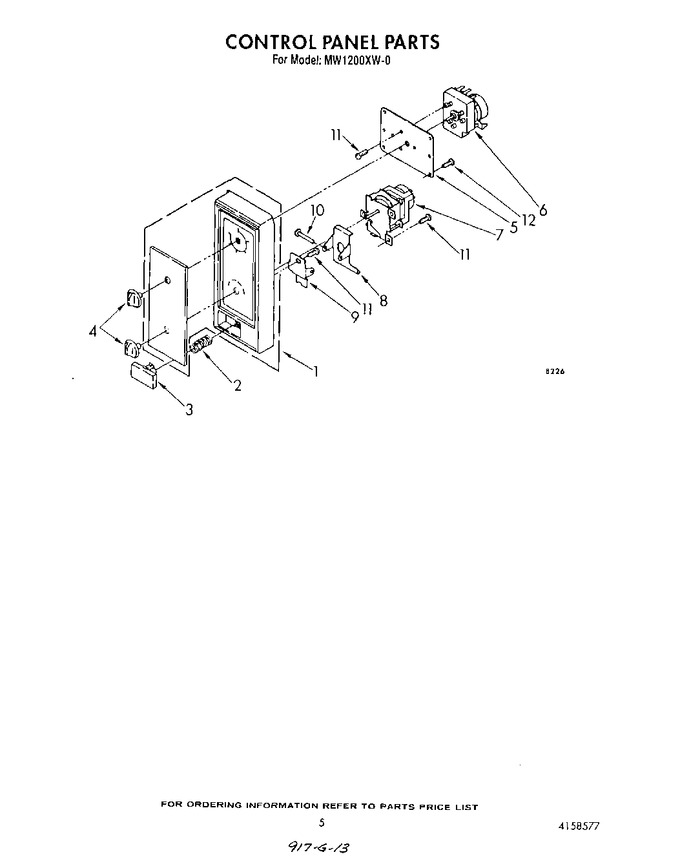

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4158125		Insert And Panel		Appelez-nous	-
2	4158110		Spring, Button		Appelez-nous	-
3	4158109		Button, Door		Appelez-nous	-
4	4158114		Knob		Appelez-nous	-
5	4158115		Bracket, Timer		Appelez-nous	-
6	4158107		Timer		Appelez-nous	-
7	4158108		Variable Power Control		Appelez-nous	-
8	4158112		Lever, Release		Appelez-nous	-
9	4158111		Base, Lever		Appelez-nous	-
10	4158113		Pin, Lever		Appelez-nous	-
11	4158076		Screw, 4 X 10 Mm (6)		Appelez-nous	-
12	4158071		Screw, 4 X 8 Mm (4)		Appelez-nous	-
