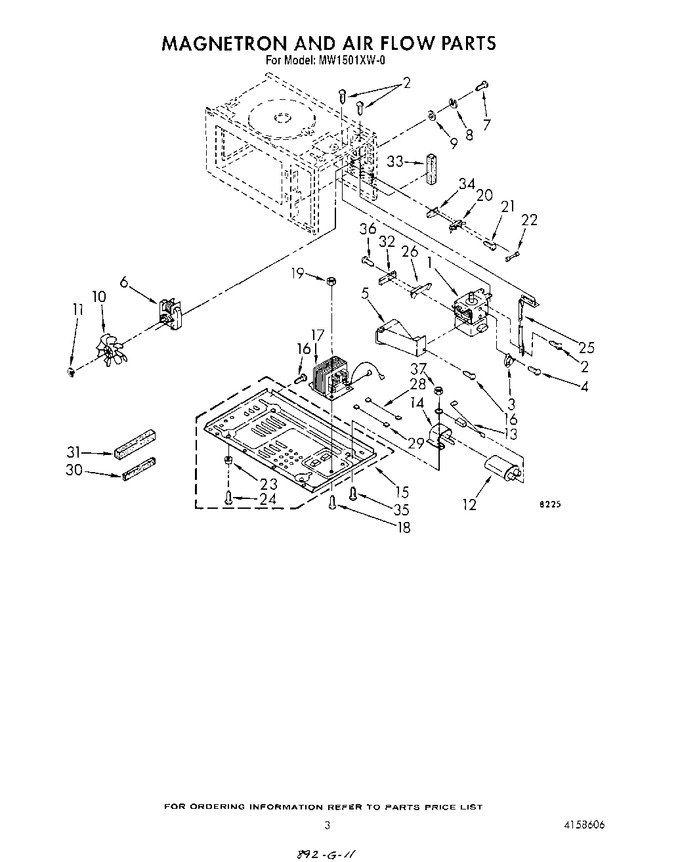

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4158054		Magnetron		Appelez-nous	-
2	4158075		Screw, 4 X 8 Mm		Appelez-nous	-
3	4158474		Thermal Protector		Appelez-nous	-
4	4158082		Screw, 3 X 8 Mm		Appelez-nous	-
5	4158058		Duct, Air		Appelez-nous	-
6	4158061		Motor, Fan		Appelez-nous	-
7	4158077		Screw, 4 X 10 Mm		Appelez-nous	-
8	4158088		Washer		Appelez-nous	-
9	4158085		Washer		Appelez-nous	-
10	4158389		Fan		Appelez-nous	-
11	4158063		E-ring		Appelez-nous	-
12	4158579		Capacitor		Appelez-nous	-
13	4158298		Diode Cable		Appelez-nous	-
14	4158043		Bracket, Capacitor		Appelez-nous	-
15	4158580		Plate, Base (includes Illus. No. 23)		Appelez-nous	-
16	4158071		Screw, 4 X 8 Mm		Appelez-nous	-
17	4158279		Transformer		Appelez-nous	-
18	4158103		Screw, 5 X 12mm		Appelez-nous	-
19	4158053		Nut		Appelez-nous	-
20	4158562		Holder, Fuse		Appelez-nous	-
21	4158072		Screw, 4 X 10 Mm		Appelez-nous	-
22	4158378		Fuse		Appelez-nous	-
23	4339375		Foot (4)		Appelez-nous	-
24	4158472		Screw		Appelez-nous	-
25	4158284		Cover		Appelez-nous	-
26	4158283		Bracket, Magnetron		Appelez-nous	-
28	4158122		Lead, High Voltage		Appelez-nous	-
29	4158123		Lead, High Voltage		Appelez-nous	-
30	4158039		Seal, Foam		Appelez-nous	-
31	4158041		Seal, Foam		Appelez-nous	-
32	4158057		Seal, Foam		Appelez-nous	-
33	4158119		Seal, Foam		Appelez-nous	-
34	4158126		Plate, Discharge		Appelez-nous	-
35	4158073		Screw, 4 X 8 Mm		Appelez-nous	-
36	4158074		Screw, 4 X 6 Mm		Appelez-nous	-
37	4158233		Nut		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
