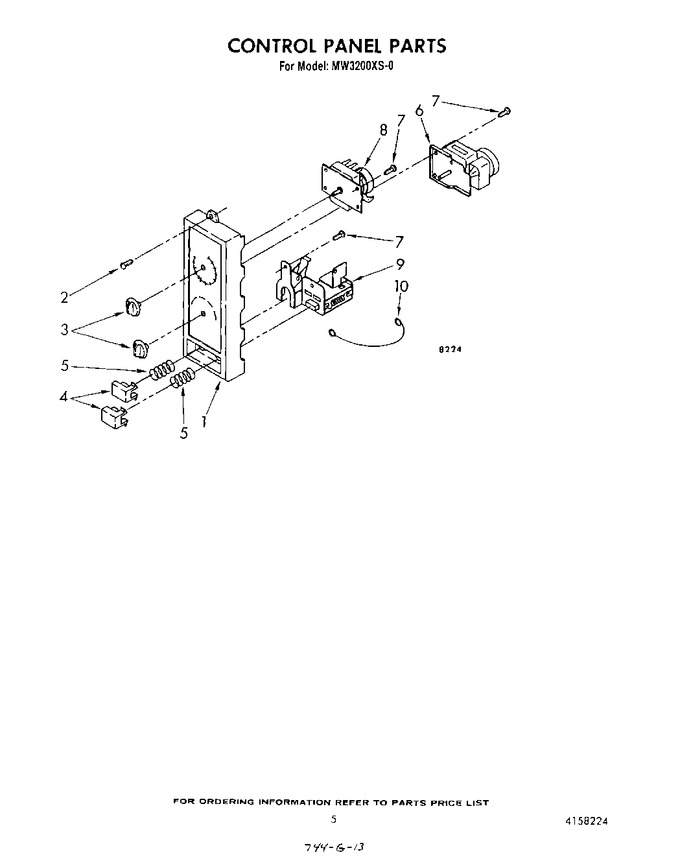

05 - Control Panel
06 - Wiring Harness , Lit/optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4158176 | Frame, Control Panel |
|
- | |||||
| 2 | 4158188 | Screw, 4 X 10mm |
|
- | |||||
| 3 | 4158114 | Knob |
|
- | |||||
| 4 | 4158177 | Button |
|
- | |||||
| 5 | 4158178 | Spring |
|
$ 5.83 | |||||
| 6 | 4158179 | Variable Power Control |
|
- | |||||
| 7 | 4158071 | Screw, 4 X 8 Mm |
|
- | |||||
| 8 | 4158180 | Timer, Minute |
|
- | |||||
| 9 | 4158181 | Switch, Start |
|
- | |||||
| 10 | 4158182 | Wire, Ground |
|
- |
