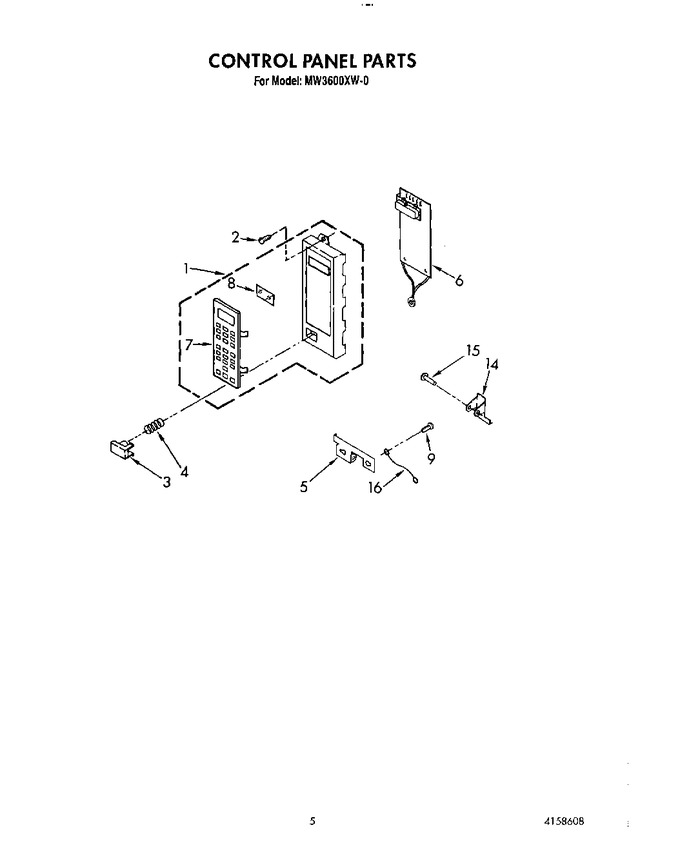

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4158668		Control Panel (includes Illustration 7 & 8)		Appelez-nous	-
2	4158188		Screw, 4 X 10mm		Appelez-nous	-
3	4158177		Button, Push To Start		Appelez-nous	-
4	4158178		Spring, Button				$ 5.83
5	4158603		Base Bracket		Appelez-nous	-
6	4158612		Microcomputer		Appelez-nous	-
9	4158071		Screw, 4 X 8 Mm		Appelez-nous	-
14	4158203		Lever, Release		Appelez-nous	-
15	4158204		Pin, Lever		Appelez-nous	-
16	4158205		Wire Lead		Appelez-nous	-
