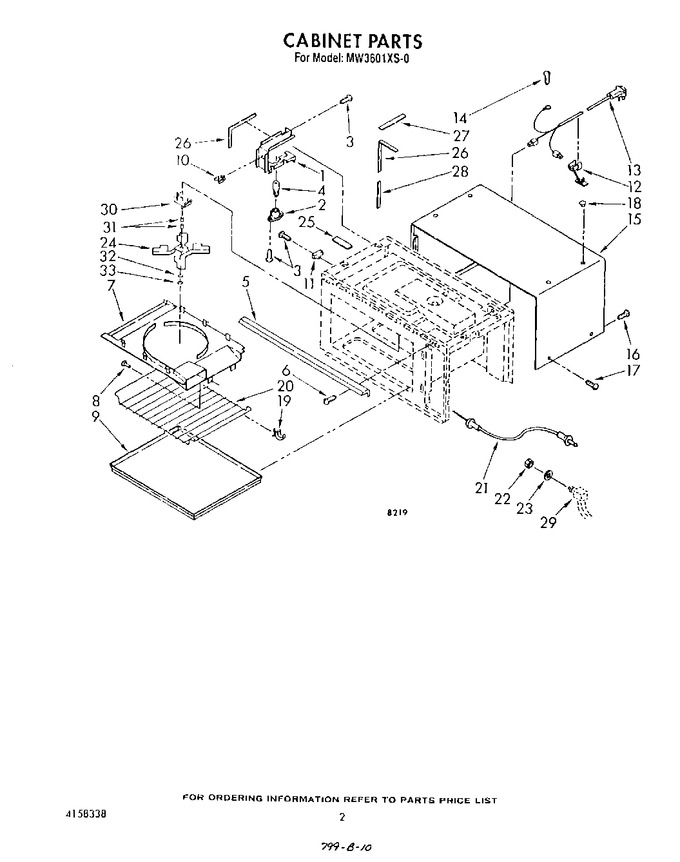

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4158138		Bracket, Light		Appelez-nous	-
2	4158097		Socket, Lamp		Appelez-nous	-
3	4158079		Screw, 4 X 8 Mm				$ 6.69
4	4158098		Bulb		Appelez-nous	-
5	4158330		Grille, Vent		Appelez-nous	-
6	4158336		Screw, 4 X 10 Mm		Appelez-nous	-
7	4158141		Cover, Stirrer		Appelez-nous	-
8	4158047		Rivet (3)		Appelez-nous	-
9	4158142		Shelf, Cavity		Appelez-nous	-
10	4158145		Clip, Wire		Appelez-nous	-
11	4158049		Fuse, Thermal		Appelez-nous	-
12	4158092		Strain Relief		Appelez-nous	-
13	4158162		Cord, Power		Appelez-nous	-
14	4158074		Screw, 4 X 16 Mm		Appelez-nous	-
15	4158329		Wrapper, Cabinet		Appelez-nous	-
16	4158071		Screw, 4 X 8 (7)		Appelez-nous	-
17	4158308		Screw, 4 X 12 (4)		Appelez-nous	-
18	4158335		Plug, Hole (4)		Appelez-nous	-
19	WP3149478		Support, Rack (4)   (Replaces: 4158209)				$ 8.64
20	4158137		Rack		Appelez-nous	-
21	4158211		Probe, Temperture		Appelez-nous	-
22	4158212		Nut (2)		Appelez-nous	-
23	4158213		Washer		Appelez-nous	-
24	4158168		Blade, Stirrer		Appelez-nous	-
25	4158171		Foam		Appelez-nous	-
26	4158172		Foam, Cabinet		Appelez-nous	-
27	4158173		Foam, Cabinet		Appelez-nous	-
28	4158174		Foam, Cabinet		Appelez-nous	-
30	4158263		Shaft, Blade		Appelez-nous	-
31	4158251		Bushing (2)		Appelez-nous	-
32	4158252		Washer		Appelez-nous	-
33	4158253		E-ring		Appelez-nous	-
