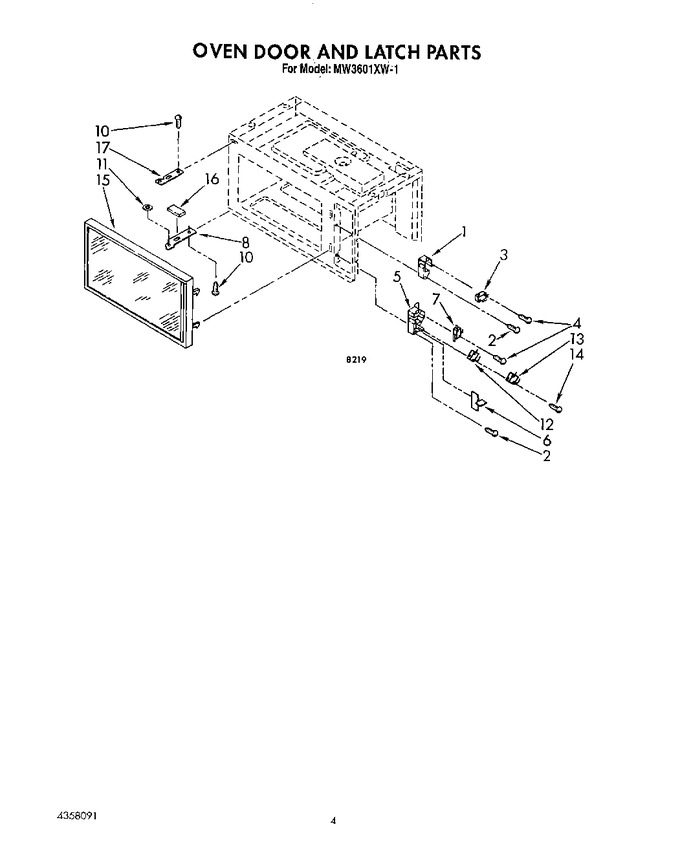

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 4158152 Latch, Upper Appelez-nous -
2 4158307 Screw, 4 X 12 Mm Appelez-nous -
3 4392027 Switch, Primary   (Replaces: 4158940) Special Order $ 138.41

4 4158187 Screw, 3 X 16 Mm (2) Appelez-nous -
5 4158839 Latch, Lower Appelez-nous -
6 4158155 Rod, Release Appelez-nous -
7 4392027 Switch, Monitor   (Replaces: 4158624) Special Order $ 138.41

8 4158160 Hinge Plate, Lower Appelez-nous -
10 WP3400094 Screw, 5 X 10 Mm (2)   (Replaces: 4158747) Special Order $ 7.14

11 4158117 Washer Appelez-nous -
12 4392027 Switch, Secondary   (Replaces: 4158841) Special Order $ 138.41

13 4392027 Switch, Light   (Replaces: 4158948) Special Order $ 138.41

14 4158208 Screw, 3 X 30 Mm Appelez-nous -
15 4158198 Door, Complete Appelez-nous -
16 4358080 Foam Appelez-nous -
17 4158139 Hinge Plate, Upper Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

Diagram for MW3601XW1
