02 - Cabinet


03 - Door , Lit/optional

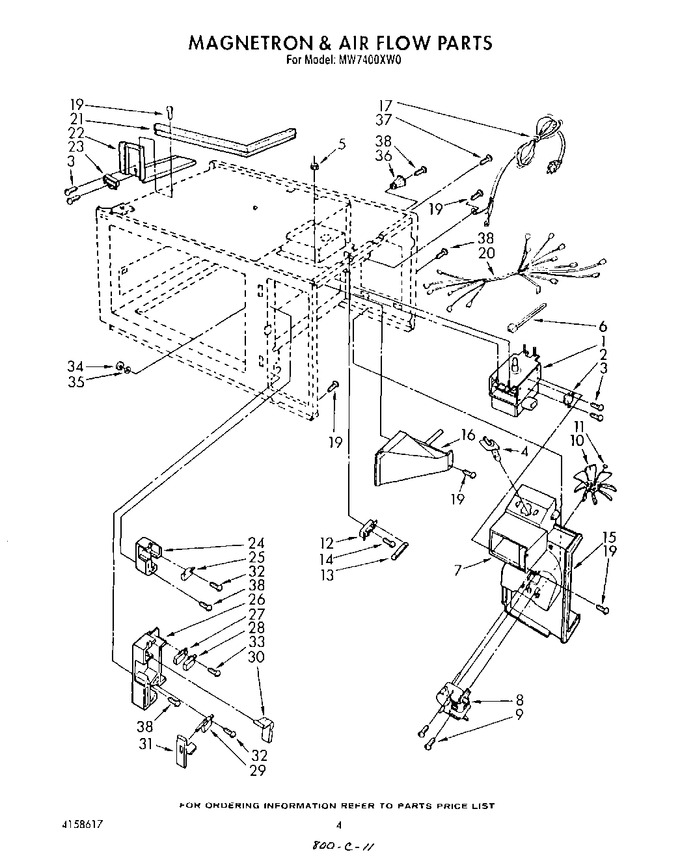

04 - Magnetron And Air Flow


05 - Base Plate


06 - Control Panel


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4158473		Magnetron		Appelez-nous	-
2	4158474		Thermostat		Appelez-nous	-
3	4158082		Screw No.3x8mm (4)		Appelez-nous	-
4	4158586		Baseless Lamp		Appelez-nous	-
5	4158403		Nut, Magnetron		Appelez-nous	-
6	4158564		Tie, Cable		Appelez-nous	-
7	4158475		Bracket, Fan		Appelez-nous	-
8	4158476		Motor, Fan		Appelez-nous	-
9	4158189		Screw No.4x28mm (2)		Appelez-nous	-
10	4158389		Fan		Appelez-nous	-
11	4158477		E-ring		Appelez-nous	-
12	4158615		Holder, Fuse		Appelez-nous	-
13	4158636		Fuse		Appelez-nous	-
14	4158079		Screw No.4x8mm (1)				$ 6.69
15	4158478		Seal, Foam		Appelez-nous	-
16	4158479		Air Duct, Lower		Appelez-nous	-
17	4158673		Power Cord		Appelez-nous	-
19	4158076		Screw No.4x10mm (7)		Appelez-nous	-
20	4158640		Wiring Harness		Appelez-nous	-
21	4158483		Air Duct, Center		Appelez-nous	-
22	4158635		Air Duct, Upper		Appelez-nous	-
23	4158562		Thermostat, Oven		Appelez-nous	-
24	4158392		Latch, Upper		Appelez-nous	-
25	4392027		Micro Switch, Primary   (Replaces: 4158600)				$ 138.41
26	4158391		Latch, Lower		Appelez-nous	-
27	4392027		Micro Switch, Oven Lamp   (Replaces: 4158625)				$ 138.41
28	4392027		Micro Switch, Monitor   (Replaces: 4158624)				$ 138.41
29	4158197		Micro Switch (secondary)		Appelez-nous	-
30	4158390		Lever, Switch		Appelez-nous	-
31	4158070		Rod, Release		Appelez-nous	-
32	4158187		Screw No.3x16mm (2)		Appelez-nous	-
33	4158208		Screw No.3x30mm (1)		Appelez-nous	-
34	4158212		Nut, Hex		Appelez-nous	-
35	4158213		Washer		Appelez-nous	-
36	4339376		Spacer		Appelez-nous	-
37	4158472		Screw No.4x16mm (1)		Appelez-nous	-
38	4158307		Screw (5)		Appelez-nous	-
