SELECT A DIAGRAM
02 - Cabinet
03 - Door, Lit/optional
04 - Magnetron And Air Flow
05 - Base Plate
06 - Control Panel
SELECT A DIAGRAM
New Model Search:

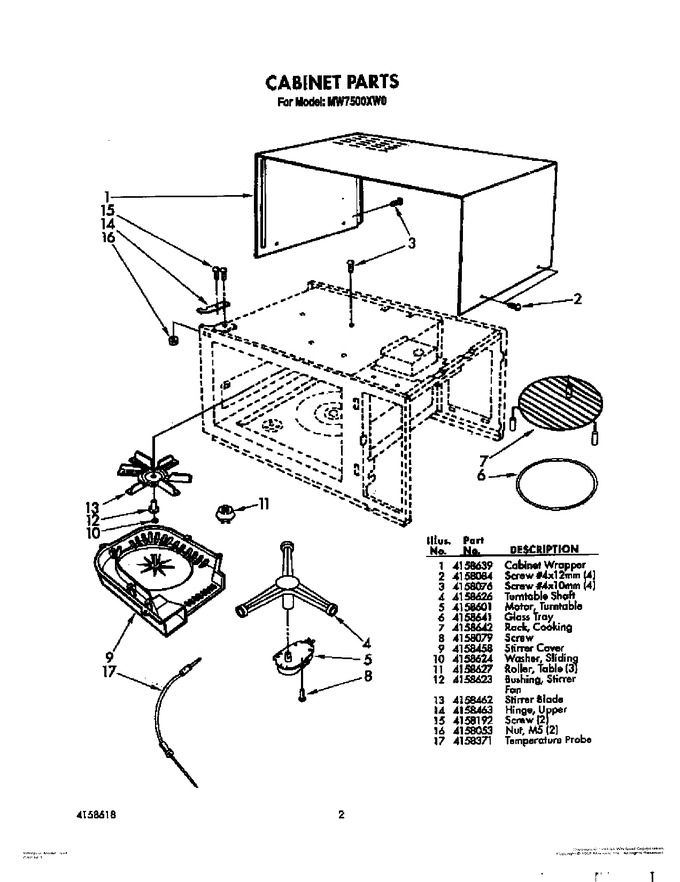

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4158639 | Cabinet Wrapper |
|
- | |||||
| 2 | 4158084 | Screw No.4x12mm (4) |
|
- | |||||
| 3 | 4158076 | Screw No.4x10mm (4) |
|
- | |||||
| 4 | 4158626 | Turntable Shaft |
|
- | |||||
| 5 | 4158601 | Motor, Turntable |
|
- | |||||
| 6 | 4158641 | Glass Tray |
|
- | |||||
| 7 | 4158642 | Rack, Cooking |
|
- | |||||
| 8 | 4158079 | Screw |
|
$ 6.69 | |||||
| 9 | 4158458 | Stirrer Cover |
|
- | |||||
| 10 | 4158905 | Washer, Sliding |
|
- | |||||
| 11 | 4158627 | Roller, Table (3) |
|
- | |||||
| 12 | 4158623 | Bushing, Stirrer Fan |
|
- | |||||
| 13 | 4158462 | Stirrer Blade |
|
- | |||||
| 14 | 4158463 | Hinge, Upper |
|
- | |||||
| 15 | 4158192 | Screw (2) |
|
- | |||||
| 16 | 4158053 | Nut, M5 (2) |
|
- | |||||
| 17 | 4158371 | Temperature Probe |
|
- |
