02 - Magnetron And Air Flow

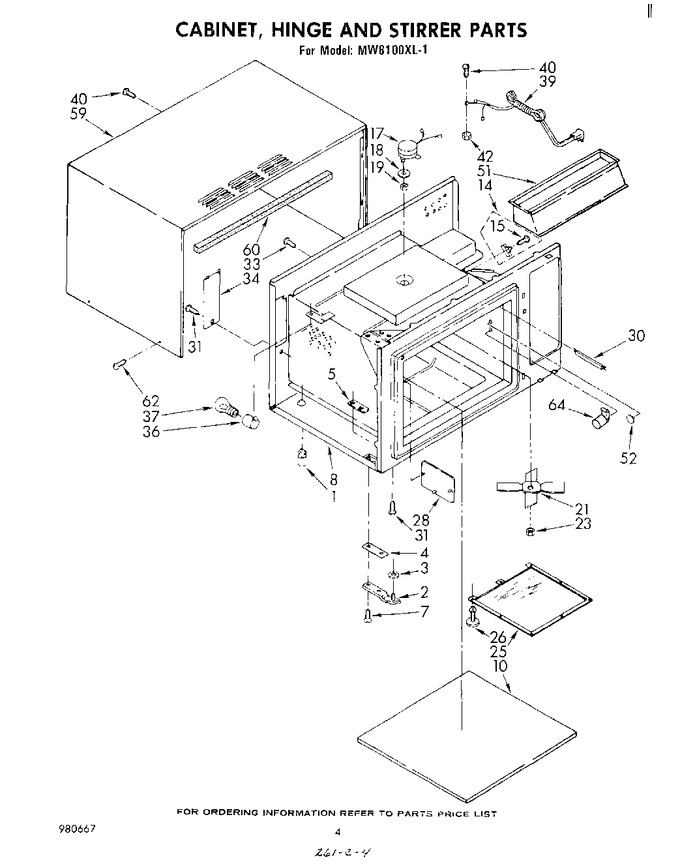

03 - Cabinet, Hinge And Stirrer
04 - Door And Latch
05 - Wiring Harness , Literature And Optional
06 - Control Panel
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 307540 | Foot, Mounting (4) |
|
- | |||||
| 2 | 329070 | Hinge Door (top) |
|
- | |||||
| 2 | 329071 | Hinge Door (bottom) |
|
- | |||||
| 3 | 312147 | Washer |
|
- | |||||
| 4 | 311991 | Hinge Shim |
|
- | |||||
| 5 | 312092 | Plate, Nut (2) |
|
- | |||||
| 7 | 311912 | Screw, 10 X 32 (2) |
|
- | |||||
| 10 | 309145 | Base, Ceramic (alternate) |
|
- | |||||
| 10 | 311058 | Base, Ceramic (alternate (install W/ Silastic No.482338)) |
|
- | |||||
| 14 | 309279 | Thermal Fuse |
|
- | |||||
| 15 | 246131 | Screw, 6a X 3/8 |
|
- | |||||
| 17 | 311515 | Motor, Stirrer (alternate) |
|
- | |||||
| 17 | 310950 | Motor, Stirrer (alternate) |
|
- | |||||
| 18 | 311245 | Washer, Internal Lock |
|
- | |||||
| 19 | 309768 | Nut |
|
- | |||||
| 21 | 309976 | Stirrer Blade |
|
- | |||||
| 23 | 307555 | Nut, 1/4-20 |
|
- | |||||
| 25 | 309441 | Cover, Stirrer |
|
- | |||||
| 26 | 310423 | Fastener (8) |
|
- | |||||
| 28 | 307516 | Cover |
|
- | |||||
| 30 | 309437 | Cover, Rivet |
|
- | |||||
| 31 | 254217 | Screw, 10a X 3/8 (4) |
|
- | |||||
| 33 | WP308685 | Screw, 10a X 1/2 (2) (Replaces: 253549) |
|
Immediately | $ 7.08 | ||||
| 34 | 307512 | Cover, Lamp |
|
- | |||||
| 36 | 307519 | Socket, Snap-in |
|
- | |||||
| 37 | 8009 | Bulb, Oven Light (Replaces: 311255) |
|
Immediately | $ 16.80 | ||||
| 39 | 311543 | Cord, Power (alternate) |
|
- | |||||
| 39 | 310900 | Cord, Power (alternate) |
|
- | |||||
| 40 | 258857 | Screw, 10-32 X 1/2 (ground) |
|
- | |||||
| 42 | 309487 | Screw, 10-32 (ground/base) |
|
- | |||||
| 51 | 309444 | Baffle, Air Exhaust |
|
- | |||||
| 52 | 309960 | Plug |
|
- | |||||
| 59 | 328645 | Wrapper, Cabinet (includes Illus. 60) |
|
- | |||||
| 60 | 308294 | Seal, Foam (1/8 X 1/4 X 20``) |
|
- | |||||
| 60 | 308295 | Seal, Foam (1/8 X 1/2 X 15-1/4``) |
|
- | |||||
| 60 | 308292 | Seal, Foam (3/8 X 1/2 X 10``) |
|
- | |||||
| 62 | 307748 | Screw, 10a X 1/2 Black (10) |
|
- | |||||
| 64 | 312214 | Plug, Hole (4) |
|
- |
