02 - Magnetron And Air Flow


03 - Cabinet And Stirrer


04 - Cabinet And Hinge


05 - Door And Latch


06 - Wiring Harness , Lit/optional


07 - Control Panel

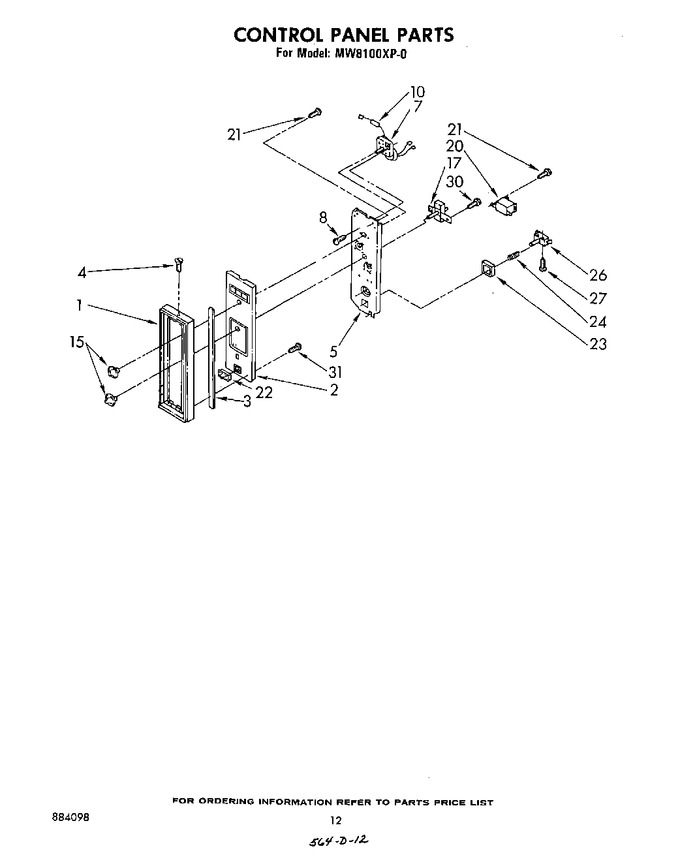

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	313115		Frame, Control Panel		Appelez-nous	-
2	991099931		Panel, Control   (Replaces: 313009)				$ 0.02
3	308300		Seal (2)		Appelez-nous	-
4	309170		Screw, 8-18 X 7/8		Appelez-nous	-
5	313059		Bracket, Support		Appelez-nous	-
7	313018		Timer, Linear		Appelez-nous	-
8	254225		Screw, 8 X 1/4 (2)		Appelez-nous	-
10	328710		Resistor And Terminal Assembly		Appelez-nous	-
15	313048		Knob, Timer (2)		Appelez-nous	-
17	313017		Switch (cook, Defrost)		Appelez-nous	-
20	660548		Relay, Power 310371 (alt.) 310373 (alt.)		Appelez-nous	-
21	313036		Screw, 6-32 (7)		Appelez-nous	-
22	313081		Bezel, Start Button		Appelez-nous	-
23	313080		Button, Push-to-start		Appelez-nous	-
24	310201		Spring, Compression		Appelez-nous	-
26	310162		Switch, Push		Appelez-nous	-
27	98106		Screw (2)		Appelez-nous	-
30	312713		Screw, 8-32 X 3/8 (2)		Appelez-nous	-
31	312248		Screw, 8-32 X 1/2 (3)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
