SELECT A DIAGRAM
02 - Magnetron And Air Flow
03 - Cabinet And Stirrer
04 - Cabinet And Hinge

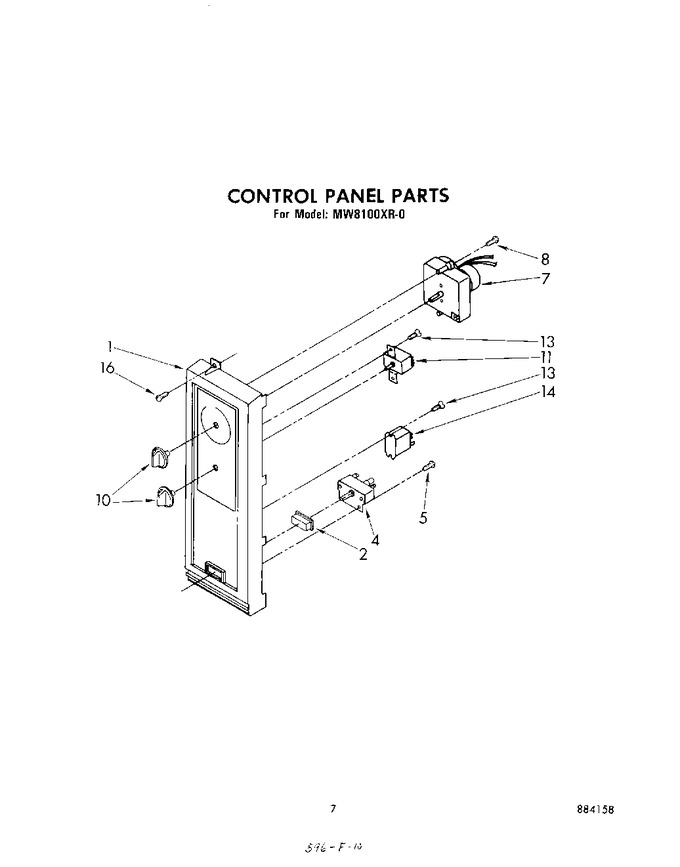

05 - Control Panel
06 - Door And Latch
07 - Wiring Harness , Literature And Optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 330462 | Frame, Control Panel |
|
- | |||||
| 2 | 313661 | Button, Start |
|
- | |||||
| 4 | 313817 | Switch, Start |
|
- | |||||
| 5 | 313823 | Screw 8-32 (2) |
|
- | |||||
| 7 | 313606 | Timer, Linear |
|
- | |||||
| 8 | 313819 | Screw (2) |
|
- | |||||
| 10 | 313743 | Knob, Timer (2) |
|
- | |||||
| 11 | 313692 | Switch, Rotary |
|
- | |||||
| 13 | 313818 | Screw (2) |
|
- | |||||
| 14 | 310373 | Relay, Power (alt.) |
|
- | |||||
| 14 | 660548 | Relay, Power |
|
- | |||||
| 14 | 310371 | Relay, Power (alt.) |
|
- |
