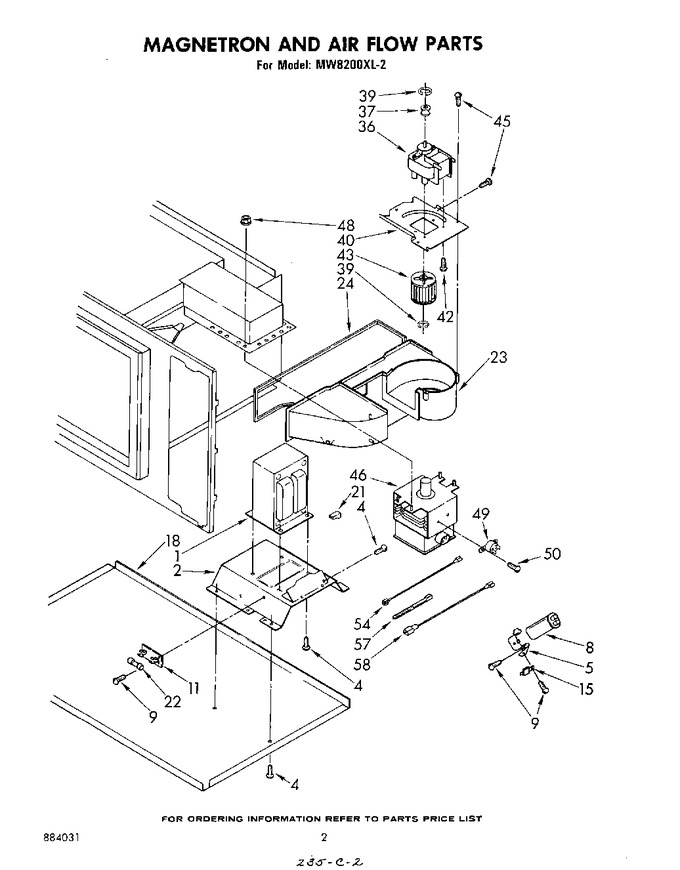

02 - Magnetron And Air Flow


03 - Cabinet And Stirrer


04 - Cabinet And Hinge


05 - Door And Latch


06 - Wiring Harness , Lit/optional


07 - Control Panel


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	312644		Transformer (alternate)		Appelez-nous	-
1	311937		Transformer (alternate)		Appelez-nous	-
2	312645		Bracket, Transformer		Appelez-nous	-
4	312185		Screw, 10-32 X 1/2 Pan Head W/ Locking Nibs (7)		Appelez-nous	-
5	312619		Bracket, Capacitor		Appelez-nous	-
8	661004		Capacitor (alternate)		Appelez-nous	-
8	312631		Capacitor (alternate)		Appelez-nous	-
9	312713		Screw, 8-32 X 3/8 Pan Head W/ Locking Nibs (5)		Appelez-nous	-
11	309795		Block, Fuse		Appelez-nous	-
15	312482		Rectifier, High Voltage		Appelez-nous	-
21	307772		Housing Receptacle		Appelez-nous	-
22	WPW10017410		Fuse (15 Amp)   (Replaces: 311167)			Immediately	$ 19.05
23	312614		Air Duct (horizontal)		Appelez-nous	-
24	WP339956		Seal, Air Duct (2) Motor   (Replaces: 311956)			Immediately	$ 7.77
36	312478		Motor (alternate)		Appelez-nous	-
36	311998		Motor (alternate)		Appelez-nous	-
37	311922		Pulley, Motor		Appelez-nous	-
39	311999		``e`` Ring (2)		Appelez-nous	-
40	311916		Bracket, Motor		Appelez-nous	-
42	WP486579		Screw, 6 X 8/32 Round Head Cross Recess (4)   (Replaces: 311865)				$ 6.61
43	311920		Wheel, Blower		Appelez-nous	-
45	346893		Screw, 11-16 X 1/2 (7)		Appelez-nous	-
46	311993		Magnetron (alternate)		Appelez-nous	-
46	311992		Magnetron (alternate)		Appelez-nous	-
46	311994		Magnetron (alternate)		Appelez-nous	-
48	310300		Flange Nut (4)		Appelez-nous	-
49	307564		Thermal Fuse		Appelez-nous	-
50	312782		Screw (2)		Appelez-nous	-
54	312009		Jumper, High Voltage Red 6-3/4 (3)		Appelez-nous	-
57	WPW10339879		Cable, Tie   (Replaces: 309330)				$ 7.11
58	312301		High Voltage Lead, Gray 6-3/4`` (2)		Appelez-nous	-
