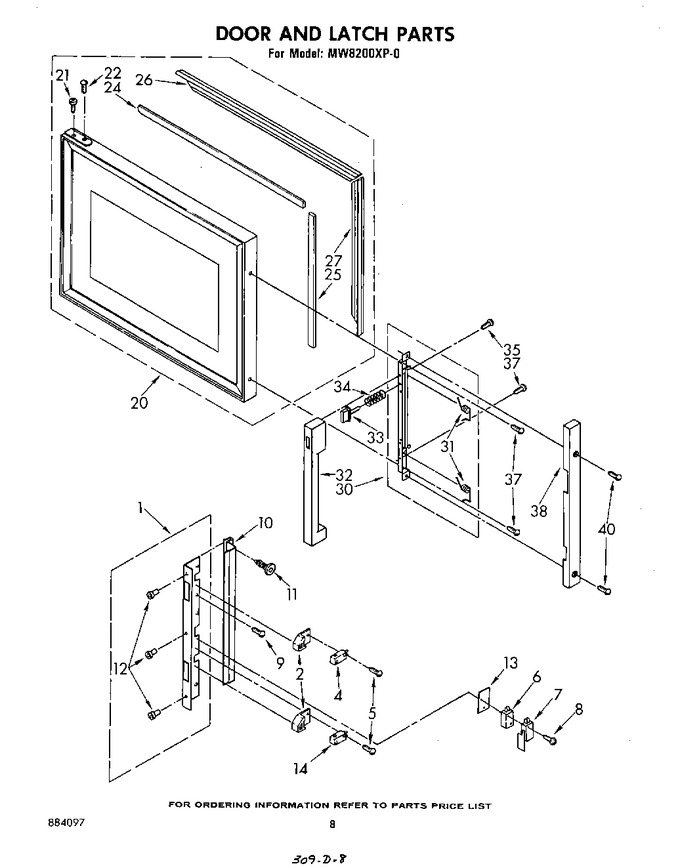

MW8200XP0 | TransGlobal : Appliance Model Lookup

Diagram #	Part Number	Description	Availability	Ships	Price
1	311354	Bracket, Catch	Appelez-nous	-
2	311795	Catch (2)	Appelez-nous	-
4	814037	Switch, Primary Interlock 313077 (alt.) 313125 (alt.) (Replaces: 661146)			$ 81.32
5	312717	Screw, 4-40 X 3/4 (4)	Appelez-nous	-
6	661144	Switch, Monitor/oven Light 313075 (alt.) 313123 (alt.)	Appelez-nous	-
7	661145	Switch, Monitor/oven Light 313076 (alt.) 313124 (alt.)	Appelez-nous	-
8	310211	Screw, 4-40 X 1 (2)	Appelez-nous	-
9	309080	Screw, 8-32 X 3/8 Slot Hex Washer Head Self-tapping (ground)	Appelez-nous	-
10	311359	Shield	Appelez-nous	-
11	310423	Accordian Rivet.(2)	Appelez-nous	-
12	311928	Rivet, Pop (3)			$ 5.33
13	313126	Insulator	Appelez-nous	-
14	814037	Switch, Secondary Interlock 313077 (alt.) 313125 (alt.) (Replaces: 661146)			$ 81.32
20	329627	Door	Appelez-nous	-
21	WPW10068250	Screw, 8-32 X 5/16 Torx Fillister Head Chrome (2) (Replaces: 311776)			$ 3.66
22	WPW10068250	Screw, 8-32 X 19/32 Torx Truss Head (6) (Replaces: 311777)			$ 3.66
24	660574	Seal, Top & Bottom (2) 311342 (alt.) 311634 (alt.)	Appelez-nous	-
25	660575	Seal, Side (2) 311343 (alt.) 311635 (alt.)	Appelez-nous	-
26	311340	Retainer, Top & Bottom Seals (2)	Appelez-nous	-
27	311341	Retain, Side Seal (2)	Appelez-nous	-
30	329063	Latch Assembly	Appelez-nous	-
31	311352	Spring, Torsion (2)	Appelez-nous	-
32	311887	Handle, Door	Appelez-nous	-
33	311889	Button, Door Handle	Appelez-nous	-
34	310197	Spring, Compression	Appelez-nous	-
35	311959	Screw, 8-32 Fillister Head Thread Form	Appelez-nous	-
37	WP489128	Screw, 8-32 X 7/16 Hex Washer Head Thread Form (3) (Replaces: 311722)			$ 9.79
38	311886	End Cap	Appelez-nous	-
40	310210	Screw, 8-32 X 5/16 Thread Form Truss Head (2)	Appelez-nous	-
