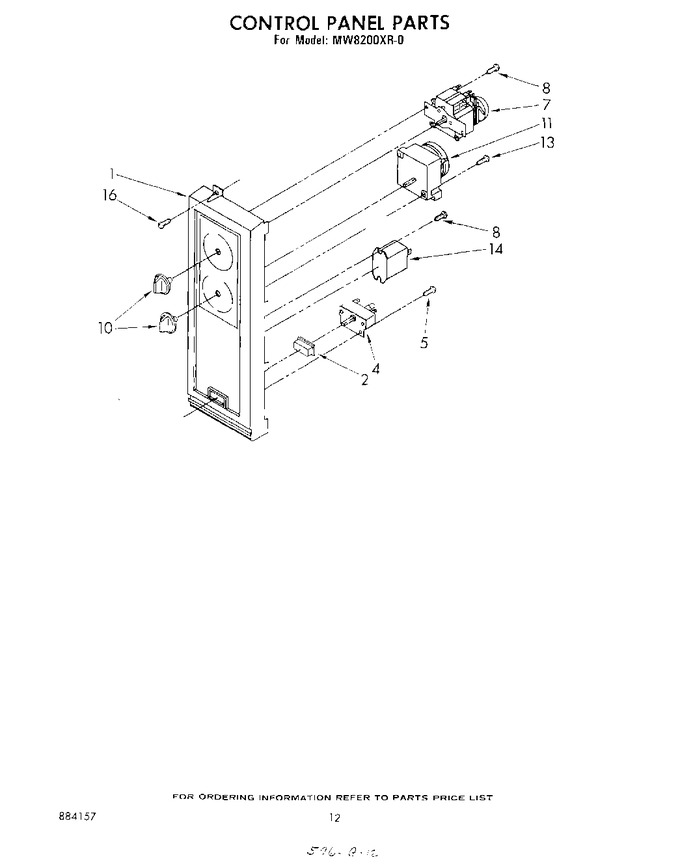

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 330463 | Frame, Control Panel |
|
- | |||||
| 2 | 313661 | Button, Start |
|
- | |||||
| 4 | 313817 | Switch, Start |
|
- | |||||
| 5 | 313823 | Screw (2) |
|
- | |||||
| 7 | 313651 | Timer (60 Min.) |
|
- | |||||
| 8 | 313818 | Screw (2) |
|
- | |||||
| 10 | 313743 | Knob, Timer (2) |
|
- | |||||
| 11 | 313600 | Timer, Percentage |
|
- | |||||
| 13 | 313819 | Screw (2) |
|
- | |||||
| 14 | 310373 | Relay, Power (alt.) |
|
- | |||||
| 14 | 660548 | Relay, Power |
|
- | |||||
| 14 | 310371 | Relay, Power (alt.) |
|
- |
