SELECT A DIAGRAM

02 - Magnetron And Air Flow


03 - Cabinet And Stirrer


04 - Cabinet And Hinge


05 - Door And Latch

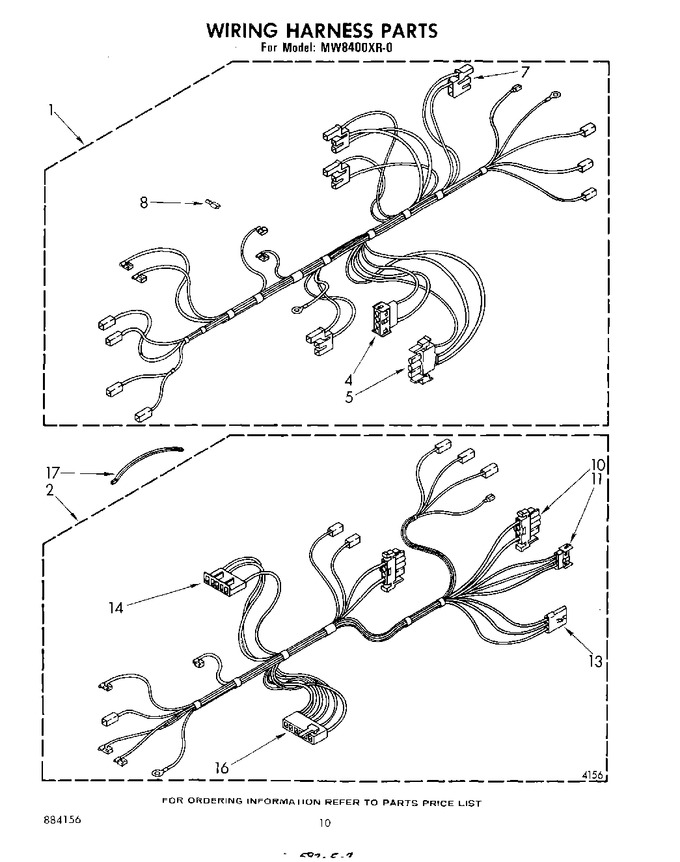

06 - Wiring Harness , Lit/optional


07 - Control Panel


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	313645		Harness, Wiring (main)		Appelez-nous	-
2	313652		Harness, Wiring Control		Appelez-nous	-
4	310959		Block, Disconnect		Appelez-nous	-
5	311150		Block, Disconnect		Appelez-nous	-
7	310241		Insulator Pad, Straight (5)		Appelez-nous	-
8	WP248562		Terminal   (Replaces: 248562)				$ 6.95
10	310957		Block, Disconnect (interlock)		Appelez-nous	-
11	309105		Block, Disconnect (main)		Appelez-nous	-
13	353425		Block, Disconnect (transmotor)		Appelez-nous	-
14	309764		Block, Disconnect (power Selector)		Appelez-nous	-
16	310957		Block, Disconnect		Appelez-nous	-
17	832989		24`` Built-in Kit		Appelez-nous	-
17	242825		Wire (14 Ga. 150 C Red)		Appelez-nous	-
17	242831		Wire (14 Ga. 200 C Red)				$ 342.23
17	242826		Wire (14 Ga. 150 C White)		Appelez-nous	-
17	242827		Wire (14 Ga. 150 C Yellow)		Appelez-nous	-
17	242832		Wire (14 Ga. 200 C Yellow)		Appelez-nous	-
17	WPW10339879		Tie Cable   (Replaces: 309330)				$ 7.11
17	WP261869		Citrine White (1/2 Oz.)   (Replaces: 261869)				$ 23.85
17	832899		Cord Brown (1/2 Oz.)		Appelez-nous	-
17	261900		Citrine White (6 Oz.)				$ 51.34
17	830881		Cord Brown (13 Oz.)		Appelez-nous	-
17	591014		Adhesive Loctite (1/3 Oz.)		Appelez-nous	-
17	WP482338		Sealer, Silastic (3 Oz.)   (Replaces: 482338)			Immediately	$ 57.16
17	832987		Built-in Kits (30``)		Appelez-nous	-
17	242820		Wire (14 Ga. 150 C Black)		Appelez-nous	-
17	832991		27``built-in Kit		Appelez-nous	-
17	832993		Wall Mount Kit		Appelez-nous	-
17	832985		Bi-level Cooking Rack		Appelez-nous	-
17	242828		Wire (12 Ga. 150 C Black)		Appelez-nous	-
17	242821		Wire (14 Ga. 150 C Blue)		Appelez-nous	-
17	242822		Wire (14 Ga. 150 C Brown)		Appelez-nous	-
17	242830		Wire (14 Ga. 200 C Brown)		Appelez-nous	-
17	242823		Wire (14 Ga. 150 C Green)		Appelez-nous	-
17	242824		Wire (14 Ga. 150 C Orange)		Appelez-nous	-
17	242829		Wire (12 Ga. 150 C Red)		Appelez-nous	-
	LIT311892		Cookbook		Appelez-nous	-
	LIT884156		List, Repair Parts		Appelez-nous	-
	LIT314062		Guide, Use & Care		Appelez-nous	-
	LIT313616		Tech Sheet		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
