02 - Magnetron And Air Flow


03 - Cabinet And Stirrer


04 - Cabinet


05 - Control Panel


06 - Door Latch


07 - Wiring Harness , Literature And Optional

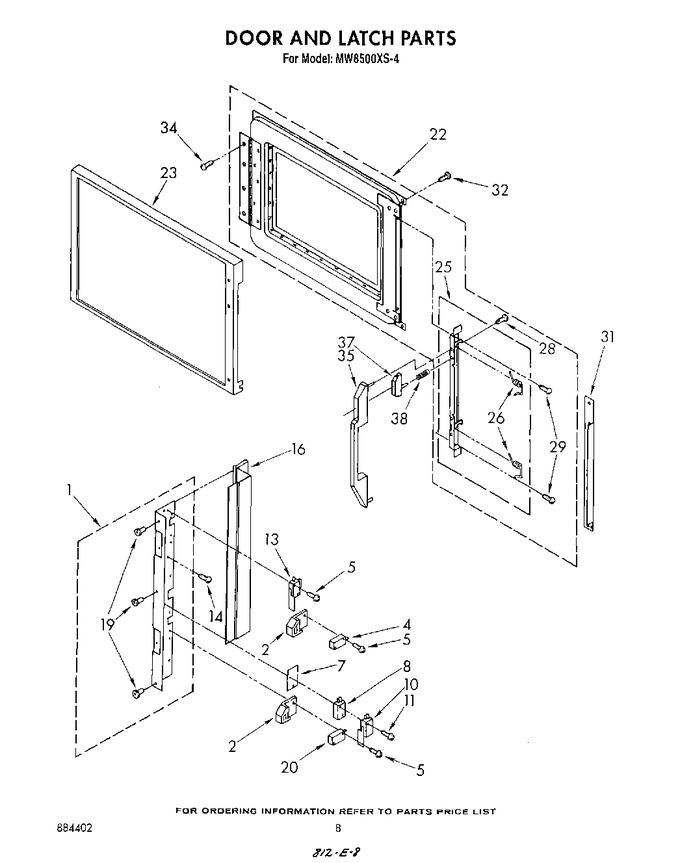

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	311354		Bracket, Catch		Appelez-nous	-
2	311795		Catch (2)		Appelez-nous	-
4	814037		Switch, Primary Interlock   (Replaces: 661146)				$ 81.32
4	814037		Switch, Primary Interlock (alt.)   (Replaces: 313077)				$ 81.32
4	814037		Switch, Primary Interlock (alt.)   (Replaces: 313125)				$ 81.32
5	312717		Screw 4-40x3/4 (8)		Appelez-nous	-
7	313126		Insulator		Appelez-nous	-
8	661144		Switch, Monitor/ Oven Light		Appelez-nous	-
8	313075		Switch, Monitor/ Oven Light (alt.)		Appelez-nous	-
8	313123		Switch, Monitor/ Oven Light (alt.)		Appelez-nous	-
10	313124		Switch, Monitor/ Oven Light (alt.)		Appelez-nous	-
10	661145		Switch, Monitor/ Oven Light		Appelez-nous	-
10	313076		Switch, Monitor/ Oven Light (alt.)		Appelez-nous	-
11	310211		Screw, 4-40 X 1 (2)		Appelez-nous	-
13	313120		Switch, Electronic		Appelez-nous	-
14	309080		Screw 8-32 X 3/8		Appelez-nous	-
16	311360		Shield		Appelez-nous	-
19	311928		Rivet, Pop (6)				$ 5.33
20	814037		Switch, Secondary Interlock (alt.)   (Replaces: 313125)				$ 81.32
20	814037		Switch, Secondary Interlock   (Replaces: 661146)				$ 81.32
20	814037		Switch, Secondary Interlock (alt.)   (Replaces: 313077)				$ 81.32
22	330451		Door, Inner		Appelez-nous	-
23	3170439		Frame, Door		Appelez-nous	-
25	329066		Latch, Complete		Appelez-nous	-
26	311352		Spring, Torsion (2)		Appelez-nous	-
28	303776		Screw, 8-32 X 5/16 (2)   (Replaces: 313811)		Appelez-nous	-
29	313820		Screw (2)		Appelez-nous	-
31	3148296		End Cap		Appelez-nous	-
32	313823		Screw 8-32 (4)		Appelez-nous	-
34	WPW10068250		Screw, 8-32 X .29 (4)   (Replaces: 311777)				$ 3.66
35	313610		Handle, Door		Appelez-nous	-
37	313611		Button, Door Handle				$ 35.65
38	310197		Spring, Compression		Appelez-nous	-
