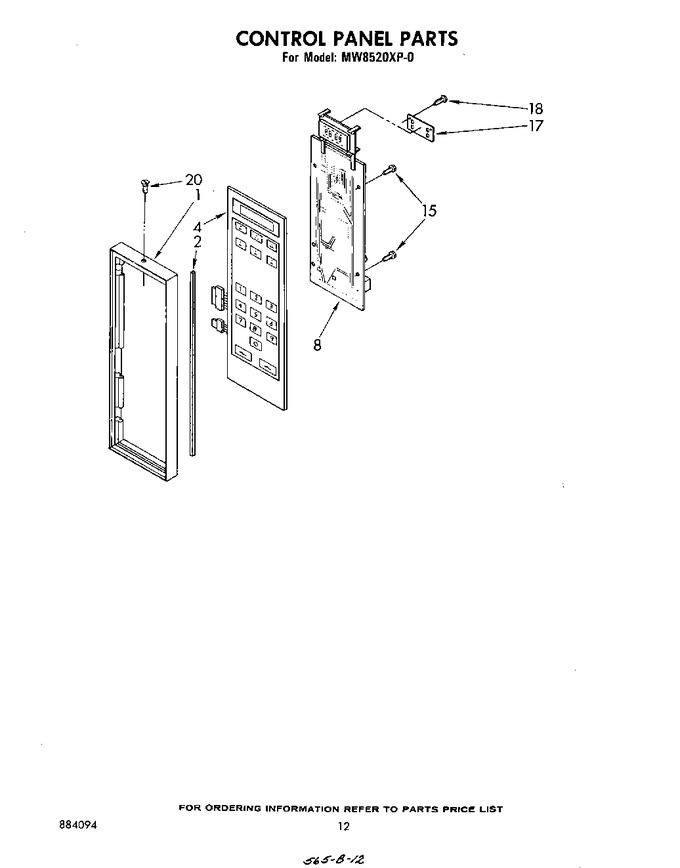

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 313115 | Frame, Control Panel |
|
- | |||||
| 2 | 308300 | Seal, Foam (2) |
|
- | |||||
| 4 | 312221 | Switch, Membrane |
|
- | |||||
| 8 | 61383 | Microcomputer |
|
- | |||||
| 15 | 311773 | Screw, 6 X 5/16 (4) |
|
- | |||||
| 17 | 313109 | Shield, Display |
|
- | |||||
| 18 | 312248 | Screw, 8-32 X 1/2 (3) |
|
- | |||||
| 20 | 309170 | Screw, 8-18 X 1/2 |
|
- |
