SELECT A DIAGRAM

02 - Magnetron And Air Flow

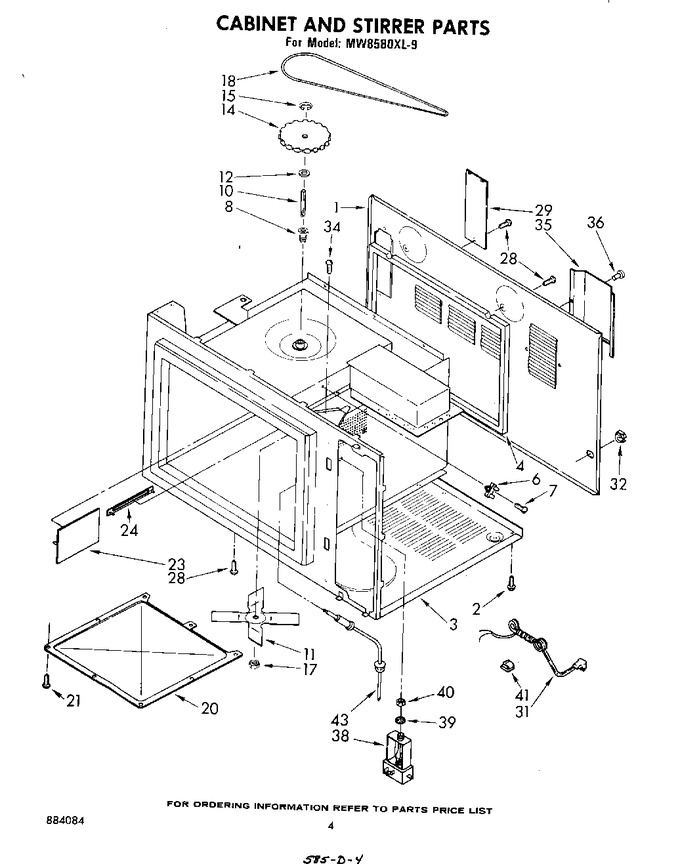

03 - Cabinet And Stirrer


04 - Cabinet And Hinge


05 - Door And Latch


06 - Wiring Harness , Lit/optional


07 - Control Panel


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	312185		Screw, 10a X 1/2 Pan Head With Locking Nibs (4)		Appelez-nous	-
4	312818		Seal, Cavity Back		Appelez-nous	-
6	309279		Thermal Fuse (includes Illus. 7)		Appelez-nous	-
7	312713		Screw, 8-32 X 3/8 Pan Head Phillips		Appelez-nous	-
8	312023		Bushing, Stirrer		Appelez-nous	-
10	312026		Shaft, Stirrer		Appelez-nous	-
11	309976		Stirrer Blade		Appelez-nous	-
12	312025		Washer, Nylon		Appelez-nous	-
14	311923		Pulley, Stirrer Blade		Appelez-nous	-
15	311999		``e`` Ring		Appelez-nous	-
17	WP487939		Nut, Standard Hex 1/4-20   (Replaces: 311721)				$ 6.95
18	311958		Belt, Drive		Appelez-nous	-
20	309441		Cover, Stirrer		Appelez-nous	-
21	310423		Fastener (8)		Appelez-nous	-
23	307516		Cover		Appelez-nous	-
24	309437		Cover, Rivet		Appelez-nous	-
28	WP308685		Screw, 10a X 1/2 Truss Head Phillips (7)   (Replaces: 253549)			Immediately	$ 7.08
29	307512		Cover, Lamp		Appelez-nous	-
31	311960		Power Cord (alternate)		Appelez-nous	-
31	311955		Power Cord (alternate)		Appelez-nous	-
32	311954		Strain Relief, Bushing		Appelez-nous	-
34	312185		Screw, 10-32 X 1/2 Hex Washer Head W/ground Ring		Appelez-nous	-
35	312000		Shield, Louver (includes Illus. 36)		Appelez-nous	-
36	311928		Rivet (2)				$ 5.33
38	309769		Washer		Appelez-nous	-
38	309654		Jack, Probe		Appelez-nous	-
39	312796		Washer, Internal Lock		Appelez-nous	-
40	309768		Nut		Appelez-nous	-
41	WP98997		Clip, Power Cord   (Replaces: 98997)				$ 9.98
43	312174		Probe, Temperature (alternate)		Appelez-nous	-
43	311439		Probe, Temperature (alternate)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
