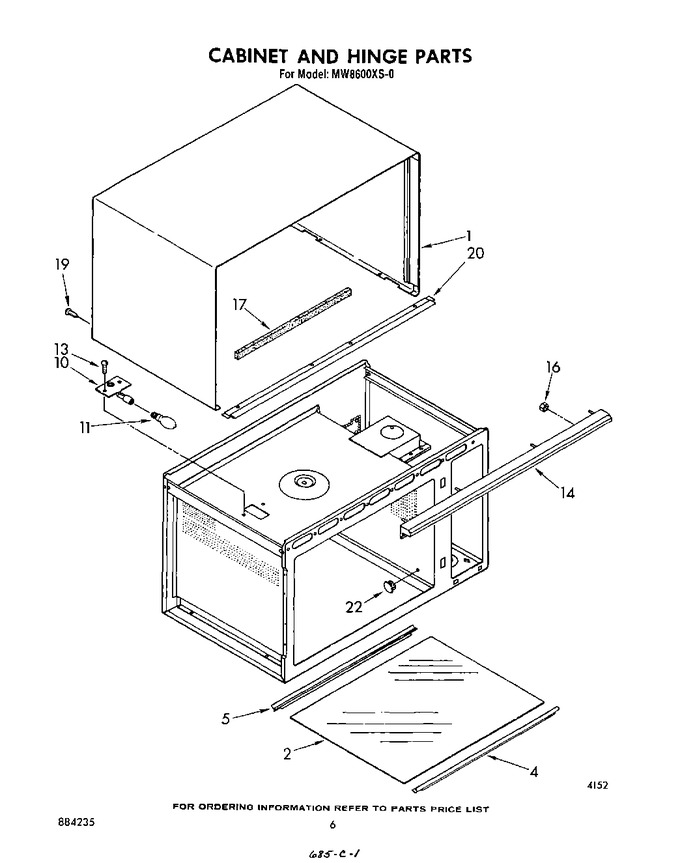

04 - Cabinet And Hinge
05 - Control Panel
06 - Door And Latch
07 - Wiring Harness , Literature And Optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 313568 | Wrapper, Cabinet |
|
- | |||||
| 2 | 313639 | Shelf, Cavity (install W/silastic No. 482338) |
|
- | |||||
| 4 | 313614 | Trim, Shelf (front) |
|
- | |||||
| 5 | 313615 | Trim, Shelf (rear) |
|
- | |||||
| 10 | 330514 | Socket, Complete |
|
- | |||||
| 11 | WP3395618 | Bulb (Replaces: 313969) |
|
Immediately | $ 71.33 | ||||
| 13 | 312713 | Screw, 8-32 X 3/8 (2) |
|
- | |||||
| 14 | 313603 | Grille, Air |
|
- | |||||
| 16 | 3147378 | Nut (3) |
|
- | |||||
| 17 | 313753 | Seal, Foam |
|
- | |||||
| 19 | WP488729 | Screw 8-32 X 1/2 (15) (Replaces: 313638) |
|
Immediately | $ 7.01 | ||||
| 20 | 313598 | Trim, Wrapper Lower |
|
- | |||||
| 22 | 312215 | Plug, Hole (4) |
|
- |
