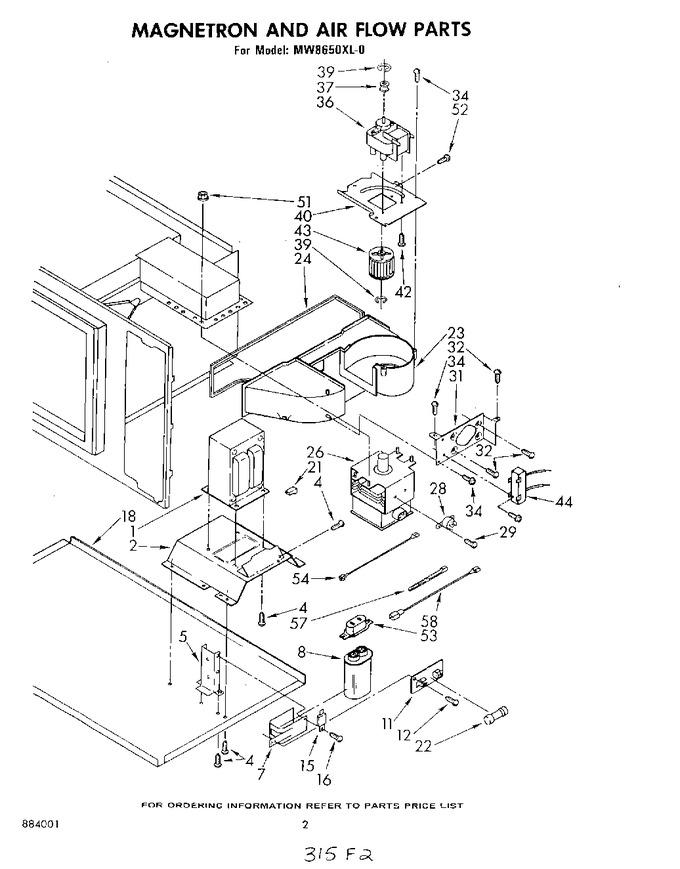

02 - Magnetron And Air Flow
03 - Cabinet And Stirrer
04 - Cabinet And Hinge
05 - Door And Latch
06 - Wiring Harness , Lit/optional
07 - Control Panel
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 311937 | Transformer |
|
- | |||||
| 2 | 311913 | Bracket, Transformer |
|
- | |||||
| 4 | 312005 | Screw, 10-32 X 1/2 Hex Washer W/ground Ring (10) |
|
- | |||||
| 5 | 311917 | Bracket, Capacitor |
|
- | |||||
| 7 | 311918 | Strap, Capacitor |
|
- | |||||
| 8 | 311939 | Capacitor (alternate) |
|
- | |||||
| 8 | 311940 | Capacitor (alternate) |
|
- | |||||
| 11 | 311941 | Fuseblock |
|
- | |||||
| 12 | WP489069 | Screw, 8-18 X 1/2 Hex Washer W/lock Nibs (4) (Replaces: 311938) |
|
Immediately | $ 7.07 | ||||
| 15 | 832836 | Rectifier, High Voltage |
|
- | |||||
| 16 | WP489128 | Screw, 8-32 X 7/16 (Replaces: 311722) |
|
$ 9.79 | |||||
| 21 | 307772 | Housing Receptacle |
|
- | |||||
| 22 | WPW10017410 | Fuse (15 Amp) (Replaces: 311167) |
|
Immediately | $ 19.05 | ||||
| 23 | 311891 | Air Duct (horizontal) |
|
- | |||||
| 24 | WP339956 | Seal, Air Duct (Replaces: 311956) |
|
Immediately | $ 7.77 | ||||
| 26 | 311993 | Magnetron (alternate) |
|
- | |||||
| 26 | 311994 | Magnetron (alternate) |
|
- | |||||
| 26 | 311992 | Magnetron (alternate) |
|
- | |||||
| 28 | 307564 | Thermostat, Fixed |
|
- | |||||
| 29 | 310410 | Screw, 6a X 3/8 (2) |
|
- | |||||
| 31 | 311915 | Mounting Brace, Duct |
|
- | |||||
| 32 | WP90767 | Screw, 8a X 3/8 Hex Washer Head Tapping (5) (Replaces: 90767) |
|
Immediately | $ 7.04 | ||||
| 34 | 346893 | Screw, 11-16 X 1/2 Double Load Space Thread (7) |
|
- | |||||
| 36 | 312478 | Motor (alternate) |
|
- | |||||
| 36 | 311998 | Motor (alternate) |
|
- | |||||
| 37 | 311922 | Pulley, Motor |
|
- | |||||
| 39 | 311999 | ``e`` Ring (2) |
|
- | |||||
| 40 | 311916 | Bracket, Motor |
|
- | |||||
| 42 | WP486579 | Screw, 6 X 8/32 Round Head Cross Recess (4) (Replaces: 311865) |
|
$ 6.61 | |||||
| 43 | 311920 | Wheel, Blower |
|
- | |||||
| 44 | 312137 | Reed Relay (alternate) |
|
- | |||||
| 44 | 312136 | Reed Relay (alternate) |
|
- | |||||
| 51 | 310300 | Flange Nut (4) |
|
- | |||||
| 52 | 310629 | Screw, 8-32 X 3/8 Truss Head Thread Cutting |
|
- | |||||
| 53 | 312294 | Cover, Capacitor |
|
- | |||||
| 54 | 312009 | Jumper, High Voltage Red 6-3/4`` |
|
- | |||||
| 57 | WPW10339879 | Cable Tie (2) (Replaces: 309330) |
|
$ 7.11 | |||||
| 58 | 312301 | High Voltage Lead, Gray 6-3/4`` (2) |
|
- |
