02 - Magnetron And Air Flow


03 - Cabinet And Stirrer


04 - Cabinet And Hinge


05 - Control Panel


06 - Door And Latch

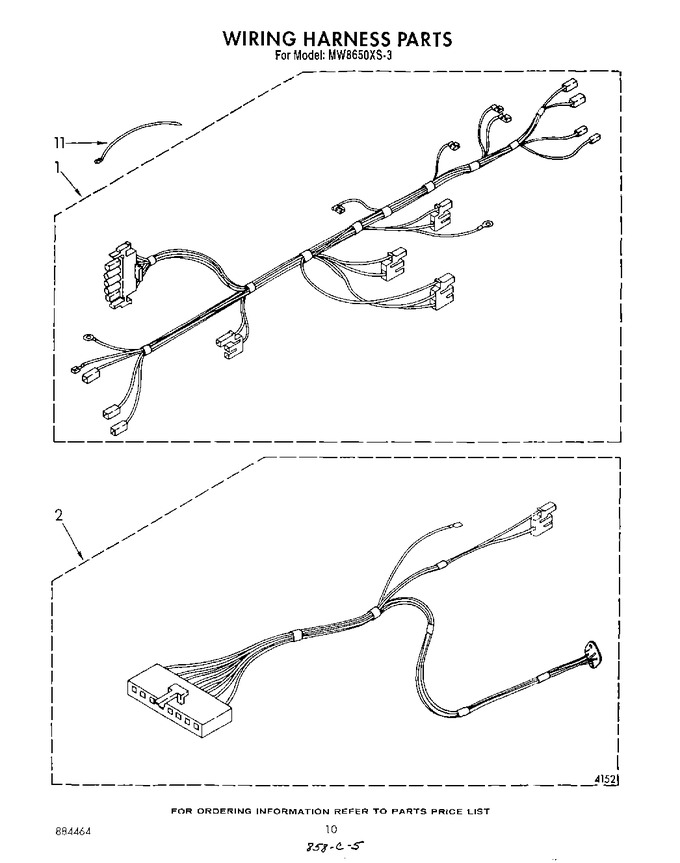

07 - Wiring Harness , Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	309080		Screw		Appelez-nous	-
1	3147072		Harness, Wiring Main		Appelez-nous	-
2	3147162		Harness, Wiring Control		Appelez-nous	-
11	832985		Bi-level Cooking Rack		Appelez-nous	-
11	242824		Wire (14 Ga. 150 C Orange)		Appelez-nous	-
11	242829		Wire (12 Ga. 150 C Red)		Appelez-nous	-
11	242825		Wire (14 Ga. 150 C Red)		Appelez-nous	-
11	242831		Wire (14 Ga. 200 C Red)				$ 342.23
11	242826		Wire (14 Ga. 150 C White)		Appelez-nous	-
11	242827		Wire (14 Ga. 150 C Yellow)		Appelez-nous	-
11	242832		Wire (14 Ga. 200 C Yellow)		Appelez-nous	-
11	WP261869		Citrine White (1/2 Oz.)   (Replaces: 261869)				$ 23.85
11	832899		Cord Brown (1/2 Oz.)		Appelez-nous	-
11	261900		Citrine White (6 Oz.)				$ 51.34
11	830881		Cord Brown (13 Oz.)		Appelez-nous	-
11	591014		Adhesive Loctite (1/3 Oz.)		Appelez-nous	-
11	W10841140		Sealer, Silastic (3 Oz.)   (Replaces: 307576)			Immediately	$ 24.92
11	832987		Built-in Kits (30``)		Appelez-nous	-
11	832989		24`` Built-in Kit		Appelez-nous	-
11	832991		27``built-in Kit		Appelez-nous	-
11	832993		Wall Mount Kit		Appelez-nous	-
11	242820		Wire (14 Ga. 150 C Black)		Appelez-nous	-
11	WPW10339879		Tie Cable   (Replaces: 309330)				$ 7.11
11	242828		Wire (12 Ga. 150 C Black)		Appelez-nous	-
11	242821		Wire (14 Ga. 150 C Blue)		Appelez-nous	-
11	242822		Wire (14 Ga. 150 C Brown)		Appelez-nous	-
11	242830		Wire (14 Ga. 200 C Brown)		Appelez-nous	-
11	242823		Wire (14 Ga. 150 C Green)		Appelez-nous	-
