02 - Magnetron And Air Flow


03 - Cabinet And Stirrer

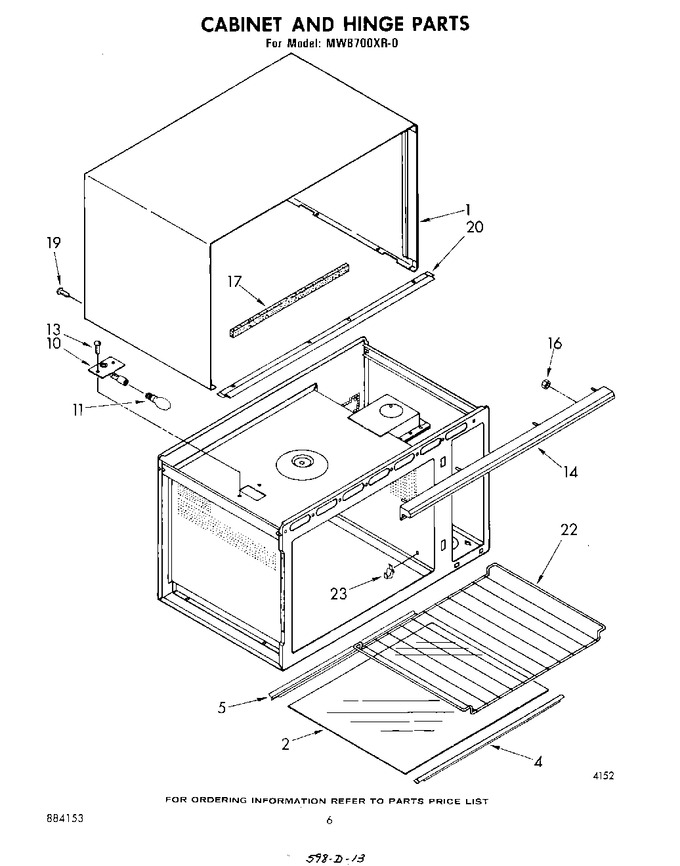

04 - Cabinet And Hinge


05 - Door And Latch


06 - Wiring Harness , Lit/optional


07 - Control Panel


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	313568		Wrapper, Cabinet		Appelez-nous	-
2	313639		Shelf, Cavity (install W/silastic No. 482338)		Appelez-nous	-
4	313614		Trim, Shelf (front)		Appelez-nous	-
5	313615		Trim, Shelf (rear)		Appelez-nous	-
10	330449		Socket, Complete		Appelez-nous	-
11	WP3395618		Bulb   (Replaces: 313760)			Immediately	$ 71.33
13	312713		Screw, 8-32 X 3/8 (2)		Appelez-nous	-
14	313603		Grille, Air		Appelez-nous	-
16	98788		Nut (3)		Appelez-nous	-
17	313753		Seal, Foam		Appelez-nous	-
19	WP488729		Screw 8-32 X 1/2 (15)   (Replaces: 313638)			Immediately	$ 7.01
20	313598		Trim, Wrapper Lower		Appelez-nous	-
22	313663		Rack, Wire		Appelez-nous	-
23	WP3149478		Support Rack   (Replaces: 313653)				$ 8.64

    View Diagram in Separate Window       Print Part List
