02 - Magnetron And Air Flow


03 - Stirrer Drive , Lit/optional

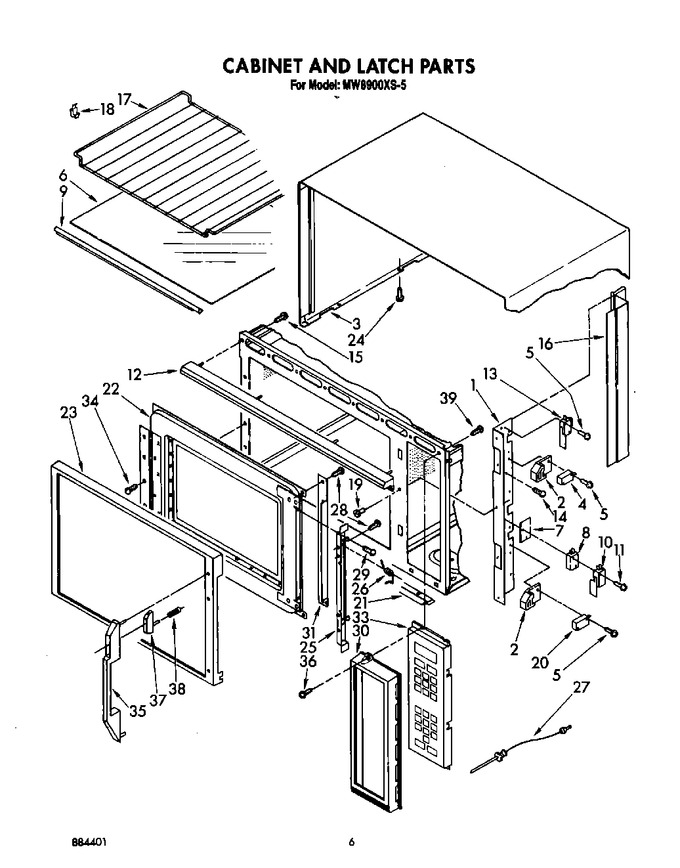

04 - Cabinet And Latch


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	311354		Bracket, Catch		Appelez-nous	-
2	311795		Catch (2)		Appelez-nous	-
3	313568		Cabinet		Appelez-nous	-
4	814037		(alt.)   (Replaces: 313125)				$ 81.32
4	814037		Switch, Primary Interlock   (Replaces: 661146)				$ 81.32
5	312717		Screw 4-40x3/4 (8)		Appelez-nous	-
6	WP482338		Sealer, Silastic (3 Oz.)   (Replaces: 482338)			Immediately	$ 57.16
6	313639		Shelf, Glass (install W/silastic		Appelez-nous	-
7	313126		Insulator		Appelez-nous	-
8	661144		Switch, Monitor/ Oven Light		Appelez-nous	-
8	313075		(alt.)		Appelez-nous	-
8	313123		(alt.)		Appelez-nous	-
9	313614		Trim, Shelf (front)		Appelez-nous	-
10	661145		Switch, Monitor/ Oven Light		Appelez-nous	-
10	313124		(alt.)		Appelez-nous	-
10	313076		(alt.)		Appelez-nous	-
11	310211		Screw, 4-40 X 1 (2)		Appelez-nous	-
12	3149307		Grille, Air		Appelez-nous	-
13	313120		Switch, Electronic		Appelez-nous	-
14	309080		Screw 8-32 X 3/8		Appelez-nous	-
15	3149443		Screw (3)		Appelez-nous	-
16	311360		Shield		Appelez-nous	-
17	313663		Rack, Wire		Appelez-nous	-
18	WP3149478		Support Rack   (Replaces: 313653)				$ 8.64
19	311928		Rivet, Pop (6)				$ 5.33
20	814037		(alt.)   (Replaces: 313077)				$ 81.32
20	814037		(alt.)   (Replaces: 313125)				$ 81.32
20	814037		Switch, Secondary Interlock   (Replaces: 661146)				$ 81.32
21	313598		Trim, Lower		Appelez-nous	-
22	3170444		Door, Inner		Appelez-nous	-
23	3170439		Frame, Door		Appelez-nous	-
24	WP488729		Screw (15)   (Replaces: 313638)			Immediately	$ 7.01
25	329066		Latch, Complete		Appelez-nous	-
26	311352		Spring, Torsion (2)		Appelez-nous	-
27	313527		Probe, Temp		Appelez-nous	-
28	303776		Screw, 8-32 X 5/16 (2)   (Replaces: 313811)		Appelez-nous	-
29	313820		Screw (2)		Appelez-nous	-
30	3148073		Frame, Control Panel		Appelez-nous	-
31	3148296		End Cap		Appelez-nous	-
33	3148252		Module, Control		Appelez-nous	-
34	WPW10068250		Screw, 8-32 X .29 (4)   (Replaces: 311777)				$ 3.66
35	313610		Handle, Door		Appelez-nous	-
37	313611		Button, Door Handle				$ 35.65
38	310197		Spring, Compression		Appelez-nous	-
39	3147218		Harness, Wiring (socket)		Appelez-nous	-
39	308564		Harness, Wiring (connector (6))		Appelez-nous	-
39	308665		Harness, Wiring (housing)		Appelez-nous	-
39	3147164		Harness, Wiring (control Panel)		Appelez-nous	-
39	313818		Screw (6)		Appelez-nous	-
