Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 3202188 Handle Appelez-nous -
2 3051305 Spacer, Handle, (2) Appelez-nous -
3 5303016258 Glass-outer Appelez-nous -
4 5303211148 Trim - Frame Appelez-nous -
5 5303210003 Spacer - Handle (2) Appelez-nous -
6 5303210001 Glass - Baffle (2) Appelez-nous -
7 5303210005 Panel - Air Wash Appelez-nous -
8 5301167830 Strike, Assembly Appelez-nous -
9 5303211340 Liner - Door Appelez-nous -
10 3206270 Seal - Door Appelez-nous -
11 5303210006 Collar - Glass Appelez-nous -
12 3016263 Seal - Window Special Order $ 66.15

13 5303211362 Baffle - Door Appelez-nous -
14 5308003186 Spring - Door (2) Appelez-nous -
15 5303018381 Hinge - Door (2) Special Order $ 145.85

16 5303210008 Spacer-glass Appelez-nous -
*66881 3202113 Button - Spacer (2) Appelez-nous -
*66881 3201807 Insulation - Door (4) Appelez-nous -
*66881 5303282419 Screw-handle 10-24x2-25 Appelez-nous -
*66881 5303212886 Tape-inner Door 45`` Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

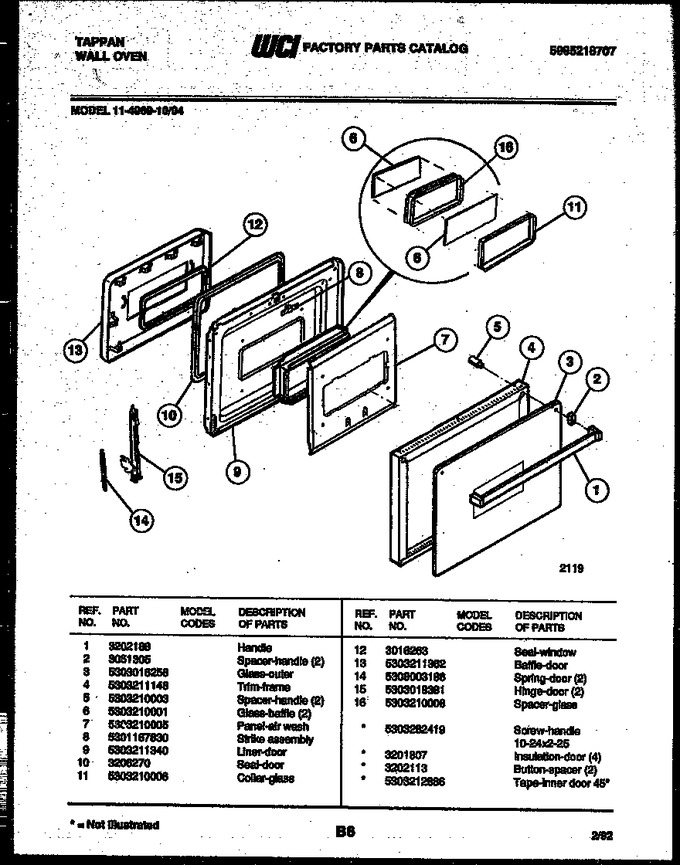

Diagram for 11-4969-00-04
