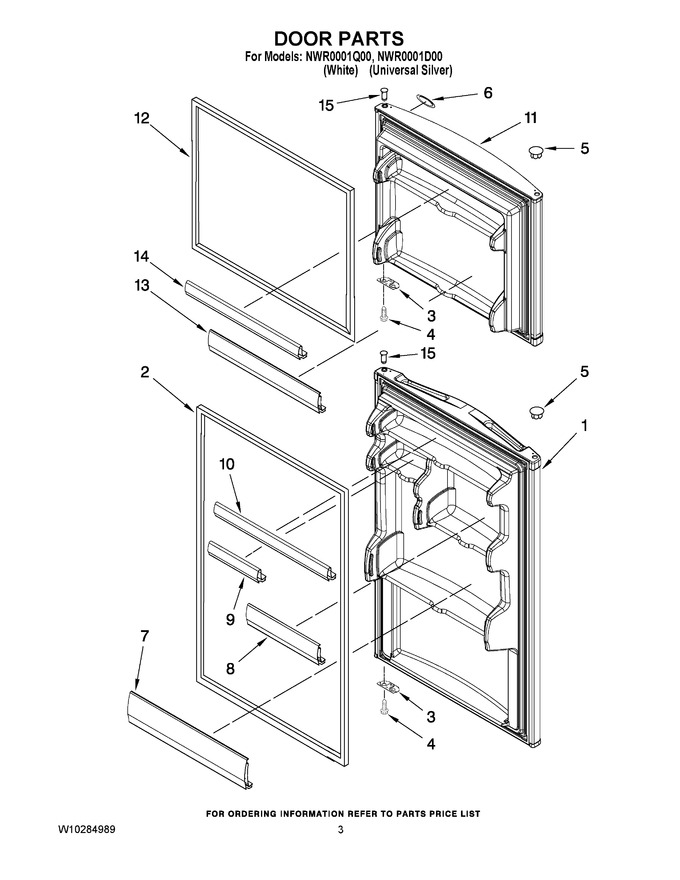

02 - Door Parts


03 - Liner Parts


04 - Unit Parts


05 - Shelf Parts


06 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10163943		Refrigerator Door (includes Illus. 2,3,4 5 & 15) (white)		Appelez-nous	-
1	W10165891		Refrigerator Door (includes Illus. 2,3,4 5 & 15) (universal Silver)		Appelez-nous	-
2	2265771		Gasket, Door (rc) (black)				$ 144.98
2	W10190029		Gasket, Door (rc) (mist Beige)				$ 151.37
3	2211124		Bracket, Door Stop		Appelez-nous	-
4	WP488921		Screw   (Replaces: 488921)			Immediately	$ 6.98
5	2211250B		Hole Plug (4) (black)		Appelez-nous	-
5	2211250W		Hole Plug (4) (white)		Appelez-nous	-
6	WP2213265		Nameplate   (Replaces: 2262180)			Immediately	$ 79.87
7	W10159918		Trim, Door Shelf (bottom)		Appelez-nous	-
8	W10159913		Trim, Door Shelf (middle-right)		Appelez-nous	-
9	W10160027		Trim, Door Shelf (middle-left)		Appelez-nous	-
10	W10160028		Trim, Door Shelf (top)		Appelez-nous	-
11	W10163942		Freezer Door (includes Illus. 3,4,5 12 & 15) (white)		Appelez-nous	-
11	W10165890		Freezer Door (includes Illus. 3,4,5 12 & 15) (universal Silver)		Appelez-nous	-
12	W10190030		Gasket, Door (fc) (mist Beige)				$ 121.04
12	WP2265773		Gasket, Door (fc) (black)   (Replaces: 2265773)				$ 247.25
13	W10159916		Trim, Door Shelf (bottom)		Appelez-nous	-
14	W10159917		Trim, Door Shelf (top)		Appelez-nous	-
15	2210973		Thimble		Appelez-nous	-
