01 - Cabinet Parts
02 - Door Parts
03 - Liner Parts
04 - Unit Parts
05 - Shelf Parts
06 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

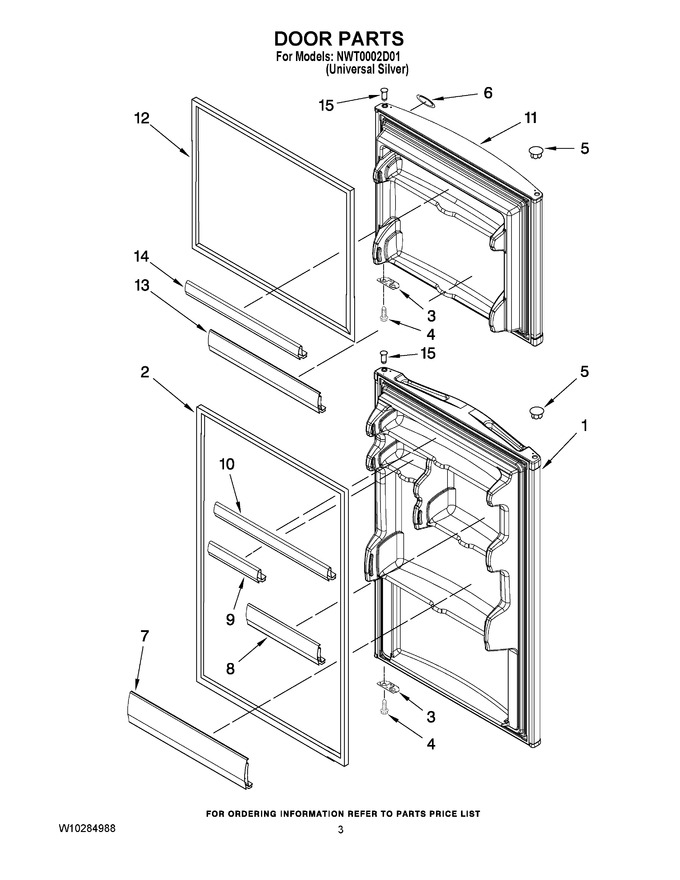

| 1 | W10207176 | Refrigerator Door (includes Illus. 2,3,4 5 & 15) (universal Silver) |
|
- | |||||
| 2 | W10190029 | Gasket, Door (rc) |
|
$ 151.37 | |||||
| 3 | 2211124 | Bracket, Door Stop |
|
- | |||||
| 4 | WP488921 | Screw (Replaces: 488921) |
|
Immediately | $ 6.98 | ||||
| 5 | 2211250B | Hole Plug (4) |
|
- | |||||
| 6 | WP2213265 | Nameplate (Replaces: 2262180) |
|
Immediately | $ 79.87 | ||||
| 7 | W10202677 | Trim, Door Shelf (bottom) |
|
- | |||||
| 8 | W10202682 | Trim, Door Shelf (middle-right) |
|
- | |||||
| 9 | W10202690 | Trim, Door Shelf (middle-left) |
|
- | |||||
| 10 | W10202691 | Trim, Door Shelf (top) |
|
$ 32.19 | |||||
| 11 | W10202691 | Freezer Door (includes Illus. 3,4,5 12 & 15) (universal Silver) |
|
$ 32.19 | |||||
| 12 | W10190030 | Gasket, Door (fc) |
|
$ 121.04 | |||||
| 13 | W10202688 | Trim, Door Shelf (bottom) |
|
- | |||||
| 14 | W10202692 | Trim, Door Shelf (top) |
|
- | |||||
| 15 | 2210973 | Thimble |
|
- |
