SELECT A DIAGRAM

01 - Cabinet Parts


02 - Door Parts


03 - Liner Parts

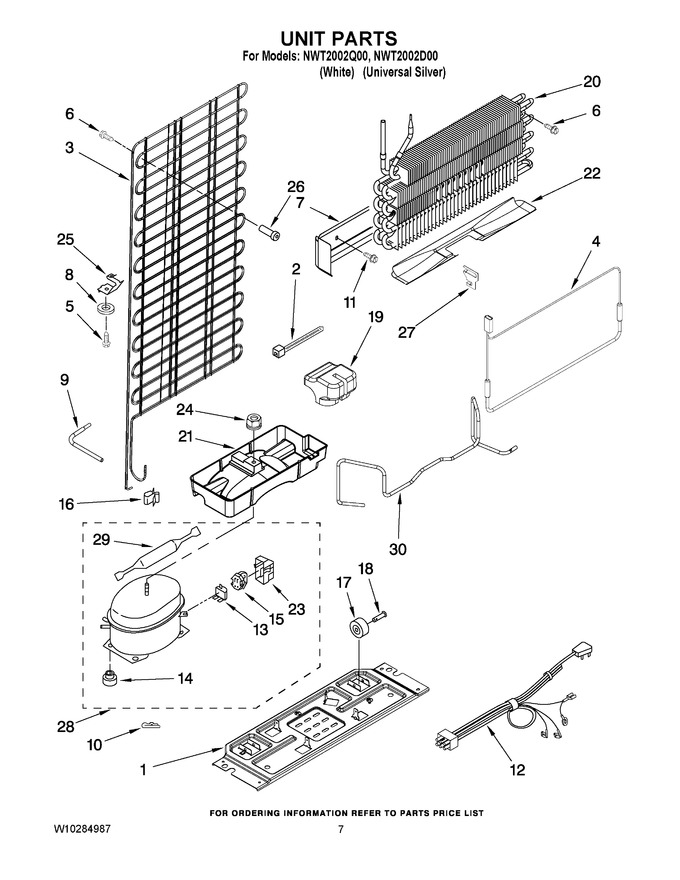

04 - Unit Parts


05 - Shelf Parts


06 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2211011		Support Plate, Compressor   (Replaces: W10222447)		Appelez-nous	-
2	WPW10339879		Strap   (Replaces: 2263990)				$ 7.11
3	W10219451		Condenser				$ 298.78
4	WP2210895		Heater, Defrost   (Replaces: 2210895)				$ 140.47
5	WP489442		Screw   (Replaces: 489442)			Immediately	$ 9.85
6	8533892		Screw		Appelez-nous	-
7	2210879		Heat Shield		Appelez-nous	-
8	8526417		Washer   (Replaces: VS611)				$ 12.55
9	2219285		Tube, Process		Appelez-nous	-
10	24364001		Clip, Compressor		Appelez-nous	-
11	WP489442		Screw   (Replaces: 489442)			Immediately	$ 9.85
12	W10231880		Wire Assy, Unit		Appelez-nous	-
13	2264602		Overload (service)				$ 140.02
14	WP2163786		Grommet (production)   (Replaces: 2222084)				$ 7.16
15	2264603		Relay, Starting (production)				$ 96.35
16	W10812038		Clip, Wire   (Replaces: 939054)		Appelez-nous	-
17	WPW10475495		Roller   (Replaces: 2150304)			Immediately	$ 28.85
18	WP2264756		Axle, Rivet   (Replaces: 2264756)				$ 6.47
19	2210813		Wedge, Evaporator		Appelez-nous	-
20	2211094		Evaporator Assy.				$ 200.46
21	2217957		Evaporator Tray		Appelez-nous	-
22	2265095		Drain Pan		Appelez-nous	-
23	WP2162358		Cover   (Replaces: 2162358)				$ 81.68
24	285002		Hex Nut   (Replaces: 489153)				$ 11.02
25	4386951		Clip, Condenser Mounting   (Replaces: 2172892)		Appelez-nous	-
26	2258451		Bracket, Condenser		Appelez-nous	-
27	2211075		Bracket		Appelez-nous	-
28	2264457		Compressor (includes Illus. 13, 14, 15, 23 & 29)		Appelez-nous	-
29	W10843121		Drier (production)   (Replaces: W10190413)			Immediately	$ 47.31
30	2262248		Tube, Discharge		Appelez-nous	-
NI	876764		Valve, Access(3/16``)			Immediately	$ 82.22
NI	978026		Valve, Access (5/16``)			Immediately	$ 115.28
NI	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 94.73
NI	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 19.48
NI	978030		Valve, Access (3/4``)				$ 117.64
NI	N/P		Refrigerant Charge (3.00 Ozs. (r134a))		Appelez-nous	-
NI	978028		Valve, Access (1/2)		Appelez-nous	-
NI	978029		Valve Access (5/8``)				$ 93.85
