SELECT A DIAGRAM
01 - Access Drawer
02 - Blower Motor
03 - Blower Motor (convection)
04 - Body
05 - Control Panel
06 - Door

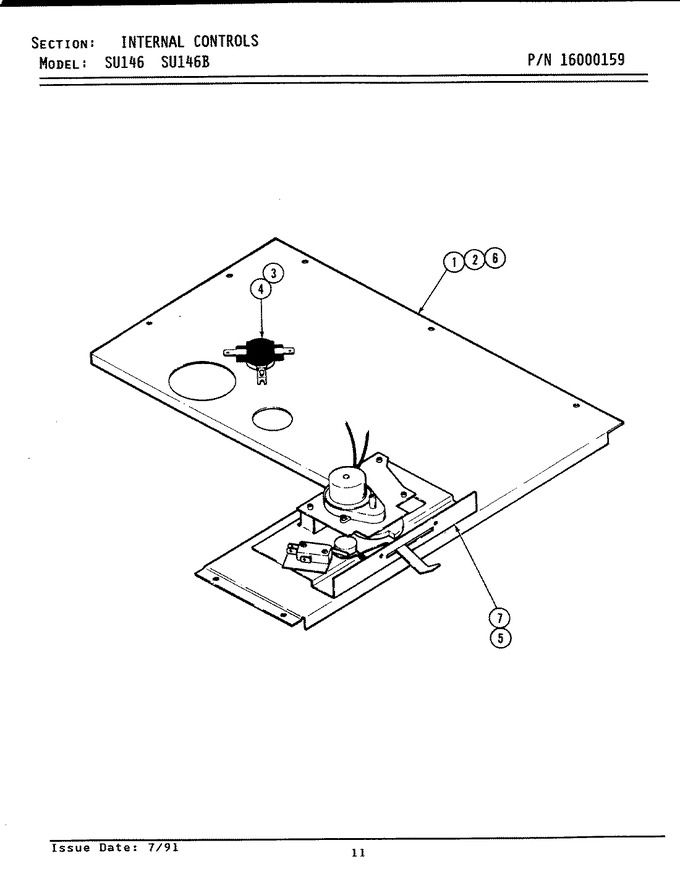

07 - Internal Controls
08 - Oven
09 - Top Assembly
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 704668 | Panel, Top | 11 |
|
- | ||||
| 2 | WP90767 | Screw (Replaces: Y700502) | 11 |
|
Immediately | $ 7.04 | |||
| 3 | WP12990527 | Screw (Replaces: Y708955) | 11 |
|
Immediately | $ 7.15 | |||
| 4 | WP7403P899-60 | Switch, Hi-limit (Replaces: Y702548) | 11 |
|
Immediately | $ 181.29 | |||
| 5 | WP90767 | Screw (Replaces: Y700502) | 11 |
|
Immediately | $ 7.04 | |||
| 6 | 702697 | Bracket,stiffener | 11 |
|
- | ||||
| 7 | Y704689 | Latch, Automatic (upper) | 11 |
|
- |
