SELECT A DIAGRAM

01 - Access Panel


02 - Blower & Convect Assy.


03 - Body


04 - Control Panel


05 - Door


06 - Gas Controls


07 - Oven


08 - Top Assembly


09 - Wiring Information

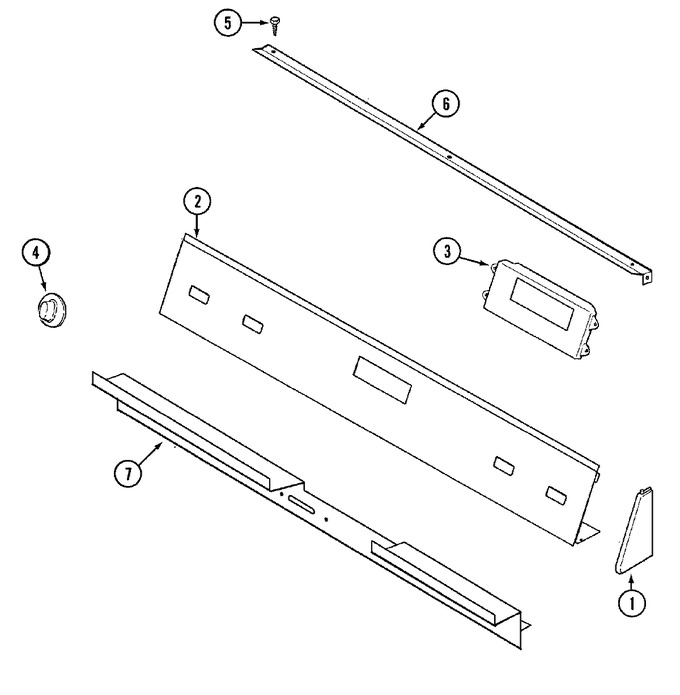

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP12990527		Screw   (Replaces: Y708955)	01		Immediately	$ 7.15
1	71002037		End Cap (lt-blk)	01	Appelez-nous	-
1	71002036		End Cap (rt-blk)	01	Appelez-nous	-
1	WP90767		Screw   (Replaces: Y700502)	10		Immediately	$ 7.04
2	71002091		Tape, Dbl. Sided (blk)	01	Appelez-nous	-
2	71002310		Switch, Membrane (blk)	01			$ 254.85
3	WP12990527		Screw   (Replaces: Y708955)	01		Immediately	$ 7.15
3	WP71001799		Clock   (Replaces: 71001799)	01		Immediately	$ 371.25
4	WP71001057		Knob, Valve (blk)   (Replaces: 71002311)	01			$ 22.21
4	12002703		Knob, Valve (blk)   (Replaces: 71003057)	13			$ 54.05
5	WPY706189		Screw   (Replaces: Y706189)	01		Immediately	$ 6.47
6	71002043		Support, Control Panel	01	Appelez-nous	-
7	71003016		Trim, Control Panel (blk)	14	Appelez-nous	-
7	71002044		Trim, Control Panel (blk)	01	Appelez-nous	-
11	71002051		Harness, Cooling Fan	01	Appelez-nous	-
11	71002059		Harness, Hi-limit	01	Appelez-nous	-
11	71002117		Harness, Convect	01	Appelez-nous	-
11	71002970		Harness, Wire (main)	01	Appelez-nous	-
11	71002049		Harness, Supply (j1)	01	Appelez-nous	-
11	71002048		Harness, Control (j2)	01	Appelez-nous	-
11	71002050		Harness, Door Lock	01	Appelez-nous	-
11	71002052		Harness, Down Draft (j4)	01	Appelez-nous	-
11	71002053		Harness, Oven Sensor (j10)	01	Appelez-nous	-
11	71002054		Harness, Infinite	01	Appelez-nous	-
13	71003508		Cookbook	01	Appelez-nous	-
13	71002475		Manual, Use & Care	01	Appelez-nous	-
13	16010191		Manual, Service	01	Appelez-nous	-
14	16000326		Guide, Quick Ref - Jenn-air	01	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
