View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Access Panel
02 - Blower & Convect Assy.
03 - Body
04 - Control Panel
05 - Door
06 - Gas Controls
07 - Oven
08 - Top Assembly
09 - Wiring Information
SELECT A DIAGRAM
New Model Search:

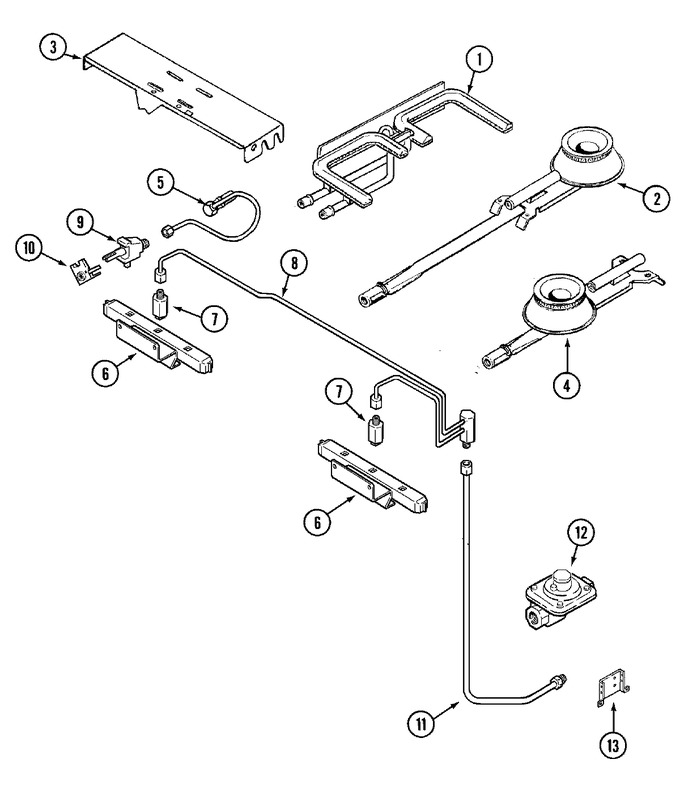

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | Y712601 | Burner, Grill | 01 |
|
$ 304.99 | ||||
| 2 | WP90767 | Screw (Replaces: Y700502) | 01 |
|
Immediately | $ 7.04 | |||
| 2 | 74005189 | Burner (rear-blk) (Replaces: 71001934) | 01 |
|
$ 211.73 | ||||
| 2 | 74005189 | Burner (rear-blk) | 22 |
|
$ 211.73 | ||||
| 3 | WP90767 | Screw (Replaces: Y700502) | 01 |
|
Immediately | $ 7.04 | |||
| 3 | WP3801F403-80 | Bracket, Burner (Replaces: Y704519) | 01 |
|
$ 71.17 | ||||
| 4 | WP90767 | Screw (Replaces: Y700502) | 01 |
|
Immediately | $ 7.04 | |||
| 4 | WP7505P283-60 | Burner (frt-blk) (Replaces: 71001933) | 01 |
|
$ 211.46 | ||||
| 4 | WP7505P283-60 | Burner (frt-blk) (Replaces: 74005001) | 22 |
|
$ 211.46 | ||||
| 5 | 71002314 | Tube, Burner (lr) | 01 |
|
- | ||||
| 5 | 71002315 | Tube, Burner (lf) | 01 |
|
- | ||||
| 5 | 71002316 | Tube, Burner (rr) | 01 |
|
- | ||||
| 5 | 71002317 | Tube, Burner (rf) | 01 |
|
- | ||||
| 6 | 71002318 | Manifold | 01 |
|
- | ||||
| 7 | 71002319 | Fitting, Gas | 01 |
|
- | ||||
| 8 | 71002320 | Tube, Manifold Supply | 01 |
|
- | ||||
| 9 | 71003231 | Screw, Valve | 01 |
|
- | ||||
| 9 | 71002323 | Valve (lt) | 01 |
|
- | ||||
| 9 | 71002321 | Valve (rt) | 01 |
|
- | ||||
| 10 | 71002322 | Switch, Valve (lt) | 01 |
|
- | ||||
| 10 | 71002330 | Switch, Valve (rt) | 01 |
|
- | ||||
| 11 | 71002324 | Tube, Supply | 01 |
|
- | ||||
| 12 | Y04100249 | Regulator, Pressure | 01 |
|
$ 173.76 | ||||
| 13 | Y04100845 | Bracket, Support | 01 |
|
- | ||||
| 14 | 12001809 | Lp Conversion Kit (Replaces: 71001160) | 01 |
|
$ 50.27 |
